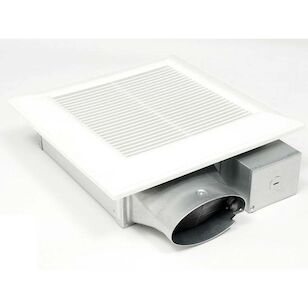

Panasonic WhisperValue® DC™ Series FV-0810VSS1 Ventilation Fan, 120 V, 0.39 A, Steel
Panasonic WhisperValue® DC™ Series FV-0810VSS1 Ventilation Fan, 120 V, 0.39 A, Steel
Panasonic Ventilation Fan, Series: WhisperValue® DC™, 120 V, 0.39 A, 60 Hz, 4.5 W, 8.5 W, 12.4 W, 0.1 to 0.37 in-WG, Steel, White, Ceiling, Wall Mounting, 10-1/4 in Length, 10-1/4 in Width, 3-3/8 in Height, 13 sq-in Grille, Ball Bearing, 80 cfm, 100 cfm Rating, 4 in Duct, Motor Specifications: ECM Motor, <0.3 sones, 0.06 sones, 0.5 sones, 0.4 sones, 0.8 sones, 0.9 sones, 1.3 sones Noise Rating, 954 rpm, 1176 rpm, 1300 rpm, 856 rpm, 1114 rpm, 1270 rpm, 805 rpm, 1088 rpm, 1260 rpm, 770 rpm, 1076 rpm, 1250 rpm, 733 rpm, 1050 rpm, 1230 rpm, 723 rpm, 1037 rpm, 1215 rpm, 711 rpm, 1033 rpm, 1200 rpm
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$195.51 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandPanasonic
Amperage Rating0.39
Bearing TypeBall
CFM Rating80 cfm, 100 cfm
ColorWhite
Duct Size4
Frequency Rating60
Grille Size13
Height3-3/8
Length10-1/4
MaterialSteel
Motor SpecificationsECM Motor
Mounting TypeCeiling, Wall
Noise Rating<0.3 sones, 0.06 sones, 0.5 sones, 0.4 sones, 0.8 sones, 0.9 sones, 1.3 sones
Power Rating4.5 W, 8.5 W, 12.4 W
Pressure Rating0.1 to 0.37
SeriesWhisperValue DC
Speed Rating954 rpm, 1176 rpm, 1300 rpm, 856 rpm, 1114 rpm, 1270 rpm, 805 rpm, 1088 rpm, 1260 rpm, 770 rpm, 1076 rpm, 1250 rpm, 733 rpm, 1050 rpm, 1230 rpm, 723 rpm, 1037 rpm, 1215 rpm, 711 rpm, 1033 rpm, 1200 rpm
Voltage Rating120
Width10-1/4
Shipping Dimensions (L x W x H)16.73" x 14.25" x 6.89"
Additional Information
ASHRAE 62.2 Compliant|CALGreen Compliant|California Title 24 Compliant|EarthCraft Certified|ENERGY STAR® Certified|HVI Certified|LEED Compliant|WA Ventilation Code Compliant
Features & Benefits
- Revolutionary ECM motor with SmartFlow™ technology for optimum CFM output Pick-A-Flow™ airflow selector one fan, you choose the cfm 80 or 110 Built-in multi-speed control for ASHRAE 62.2 compliance Multi-speed control with 20 min time delay for ASHRAE 62.2 compliance Elegant grille design compliments the aesthetics of any bathroom Lighted models incorporate one 10 W dimmable LED chip panel with <1 W LED night light for warm, energy efficient illumination night light must be wired separately 3-3/8 in housing depth lowest profile ENERGY STAR® fan available fits anywhere Unique L-shaped bracket simplifies installation and provides strong support UL approved for ceiling or wall-mount actually fits in a 2 x 4 stud wall Wall installation reduces cost by eliminating the need to incorporate a radiation damper when penetrating fire rated ceilings, making it ideal for multi-family applications
Documents
Marketing Information
WhisperValue® DC™ with multi-speed allows you to select the proper cfm settings to satisfy ASHRAE 62.2 code compliance for continuous ventilation requirements. As the lowest profile ENERGY STAR® rated ventilation fan available it is ideal for all types of residential and multi-family construction. Features our revolutionary ECM motor with SmartFlow™ technology to remove unhealthy air from any space. Pick-A-Flow™ airflow selector switch enables you to customize airflow settings at your choice of 80 or 100 cfm.
