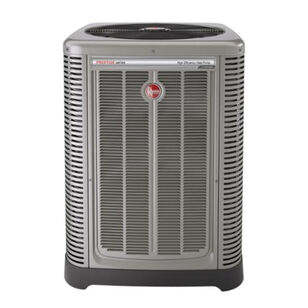

Rheem® RP2024BJVCA Heat Pump, 2 ton, 24000 Btu/hr BTU, 208-230 V, 22 A, 1/2 hp, 1 ph Phase, Steel, R-410A Refrigerant
Rheem® RP2024BJVCA Heat Pump, 2 ton, 24000 Btu/hr BTU, 208-230 V, 22 A, 1/2 hp, 1 ph Phase, Steel, R-410A Refrigerant
Rheem® Heat Pump, Prestige® RP20 Series, RP2024 Model, 208-230 V Voltage Rating, 22 A Amperage Rating, 7.03 kW Power Rating, 1/2 hp Rating, 60 Hz Frequency Rating, 1 ph Phase, 24000 Btu/hr BTU Rating, 14 EER Rating, 20 SEER Rating, 11 HSPF Rating, Connection Type: Sweat, Scroll Compressor Type, R-410A Refrigerant Type, 3/8 in Liquid Line Size, 3/4 in Suction Line Size, 30 A Fuse Rating, 28.3 sq-ft Face Area, 20 FPI Coil Rating, Direct Drive Type, 2 ton Tonnage, 69 dBA Sound Level, 2 Number of Stages, Steel, Galvanized/Powder-Coated, 35-3/4 in L x 35-3/4 in W x 39 in H Dimensions, 1 Number of Rows Additional Information
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$13,222.22 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Additional Information1 Number of Rows
Amperage Rating22
BTU Rating24000
Coil Rating28.3 sq-' Face Area, 20 FPI
Compressor TypeScroll
Connection TypeSweat
Dimensions35-3/4 " L x 35-3/4 " W x 39 " H
Drive TypeDirect
EER Rating14
FinishGalvanized/Powder-Coated
Frequency Rating60
Fuse Rating30
HP Rating1/2
HSPF Rating11
IndustryHVAC
Liquid Line Size3/8
MaterialSteel
ModelRP2024
Number of Stages2
Phase1
Power Rating7.03
Refrigerant TypeR-410A
SEER Rating20
SeriesPrestige RP20 Series
Sound Level69
Suction Line Size3/4
Tonnage2
Voltage Rating208-230
Warranty10 Year Conditional Unit Replacement, 10 Year Limited Parts
Shipping Dimensions (L x W x H)39.37" x 39.64" x 41.56"
Additional Information
AHRI Certified|cULus Listed|Energy Guide|ENERGY STAR Certified|ISO 9001:2015
Features & Benefits
- PlusOne™ expanded valve space - 3, 4 and 5 in service valve space provides a minimum working area of 27 sq-in for easier access PlusOne™ triple service access - 15 in W, industry leading corner service access makes repairs easier and faster The three-fastener removable corner allows optimal access to internal unit components, individual louver panels come out once fastener is removed, for faster coil cleaning and easier cabinet reassembly EcoNet® smart home system provides advanced air and water control for maximum energy savings and ideal comfort New composite base pan - dampens sound, captures louver panels, eliminates corrosion and reduces number of fasteners needed Powder-coated paint finish - for a long-lasting professional finish The Copeland™ scroll variable-speed compressor has a modulating technology which provides more precise temperature control, lower humidity and greater efficiency Modern cabinet aesthetics - increased curb appeal with visually appealing design Equipped with electronic expansion valve to precisely control variable refrigerant flow Improved tubing design reduces vibration and stress, making unit quieter and reducing opportunity for leaks Optimized defrost characteristics - decrease defrosting and provide better home comfort Optimized reversing valve sizing improves shifting performance for quieter unit operation and increased life of the system Enhanced mufflers help to dissipate vibration energy for quieter unit operation Integrated heat pump lift receptacle allows standard CPVC stands to be inserted into the base Curved louver panels - provide ultimate coil protection, enhance cabinet strength and increase cabinet rigidity Optimized fan orifice - optimizes airflow and reduces unit sound Rust-resistant screws confirmed through 1500 hr salt spray testing Diagnostic service window with two-fastener opening provides access to the high and low pressure External gauge port access - allows easy connection of "low-loss" gauge ports Single row condenser coil - makes unit lighter and allows thorough coil cleaning to maintain "out of the box" performance
Rheem® RP2024BJVCA Heat Pump, 2 ton, 24000 Btu/hr BTU, 208-230 V, 22 A, 1/2 hp, 1 ph Phase, Steel, R-410A Refrigerant
BrandRheem®
MFG #RP2024BJVCA
Keller #1035461
