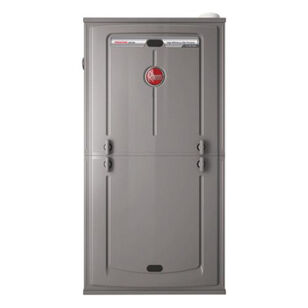

Rheem® Eclipse Series R98VB070M317USA Gas Furnace, Up to 3 ton, 70000 Btu/hr Input BTU, 115 VAC, 1/2 hp, 97% AFUE
Rheem® Eclipse Series R98VB070M317USA Gas Furnace, Up to 3 ton, 70000 Btu/hr Input BTU, 115 VAC, 1/2 hp, 97% AFUE
Rheem® Gas Furnace, R98V Series, 70000 Btu/hr Input BTU Rating, 115 VAC Voltage Rating, 10 A Amperage Rating, 1050 cu-ft/min Cooling, 1109 cu-ft/min Heating CFM Rating, 1/2 hp Rating, 97% AFUE Rating, 20.51 kW Wattage, 1 Phase, 60 Hz Frequency Rating, Modulating Upflow Configuration, Connection Type: 1/2 in NPT, Natural/Propane Gas Fuel Type, 8 in W x 11 in Dia Blower Size, 20-1/2 in W x 35 in H x 29-5/8 in D Cabinet Dimensions, ECM Motor Type, Up to 3 ton Tonnage, Direct Spark Ignition Type, 20 - 50 deg F Low Fire, 40 - 70 deg F High Fire Temperature Rise
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$7,524.88 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
AFUE Rating97%
Amperage Rating10
ApplicationFor residential applications
Blower Size8 " W x 11 " Dia
Cabinet Dimensions20-1/2 " W x 35 " H x 29-5/8 " D
CFM Rating1050 cu-'/min Cooling, 1109 cu-'/min Heating
ConfigurationModulating Upflow
Connection Type1/2 " NPT
Frequency Rating60
Fuel TypeNatural/Propane Gas
HP Rating1/2
Ignition TypeDirect Spark
IndustryHVAC
Input BTU Rating70000
Motor TypeECM
Phase1
SeriesR98V
Temperature Rise20 - 50 deg F Low Fire, 40 - 70 deg F High Fire
TonnageUp to 3
Voltage Rating115
Wattage20.51
Additional Information
AHRI Certified, CSA Certified, ISO 9001:2008 Certified
Features & Benefits
- Modulating operation to save energy and maintain optimal comfort level Variable speed blower motor technology provides ultimate humidity control, quieter sound levels and year round energy savings PlusOne™ diagnostics 7-segment LED all units PlusOne ignition system - DSI for reliability and longevity PlusOne water management system with patented blocked drain sensor PlusOne energy efficiency - industry's highest AFUE gas furnace family, the R98V features 98% AFUE across all model sizes Heat exchanger is removable for improved serviceability Low profile 34 in cabinet ideal for space constrained installations Blower shelf design - serviceable in all furnace orientations Pre marked hoses insures proper system drainage Vent with 2 or 3 in PVC Replaceable collector box Hemmed edges on cabinet and doors Quarter turn fasteners for tool less access Integrated control boards feature dip switches for easy system set up Self priming condensate trap Modulating function - when used with an EcoNet control center modulating thermostat, modulation rate between 40% and 100% of total capacity Two stage function - when used with a two-stage thermostat, furnace operates at 40% on first stage, and stages up to 65%, then 100% for second stage Multistage function - when used with a single-stage thermostat, furnace functions as a three stage furnace operating at 40%, 65% and 100% of total capacity 2nd design Series
Documents
Rheem® Eclipse Series R98VB070M317USA Gas Furnace, Up to 3 ton, 70000 Btu/hr Input BTU, 115 VAC, 1/2 hp, 97% AFUE
BrandRheem®
MFG #R98VB070M317USA
Keller #1036478
My Part ##
Last Ordered#
$7,524.88 / ea
