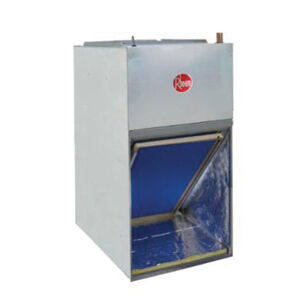

Rheem® Ovation Series RF1T3624MTANJAB08 Air Handler With TEV Metering, 3 ton, 36000 Btu/hr Cooling BTU, 208/240 VAC
Rheem® Ovation Series RF1T3624MTANJAB08 Air Handler With TEV Metering, 3 ton, 36000 Btu/hr Cooling BTU, 208/240 VAC
Rheem® Air Handler, RF1T Series, 3 ton Nominal Capacity, 36000 Btu/hr Cooling BTU Rating, 208/240 VAC Voltage Rating, 26/30 A Circuit, 36/41 A Minimum Circuit, 2.5 A Motor Amperage Rating, 10.6 kW Cooling, 8 kW Heating Wattage, 1/2 hp Rating, 60 Hz Frequency Rating, 1 ph Phase, 1000 to 1200 cfm Rating, 14.5 SEER Rating, R-410A Refrigerant Type, 40/45 A Fuse Rating, 20 x 25 x 1 in Filter Size, 1 Number of Stages, Steel, 24 in W x 21 in D x 36 in H Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,935.37 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating26/30 A Circuit, 36/41 A Minimum Circuit, 2.5 A Motor
BTU Rating36000 Btu/hr Cooling
CFM Rating1000 to 1200
Dimensions24 " W x 21 " D x 36 " H
Filter Size20 x 25 x 1
Frequency Rating60
Fuse Rating40/45
HP Rating1/2
IndustryHVAC
MaterialSteel
Nominal Capacity3
Number of Stages1
Phase1
Refrigerant TypeR-410A
SEER Rating14.5
SeriesRF1T
Voltage Rating208/240
Wattage10.6 kW Cooling, 8 kW Heating
Additional Information
AHRI Certified, ISO 9001:2008, C/US UL Listed
Features & Benefits
- Rugged wall steel cabinet construction, designed for added strength and versatility 1 in foil faced insulation for excellent thermal and sound performance Four leg blower motor mount Traditional open wire element design for heat applications Indoor coil design provides low air side pressure drop, high-performance and extremely compact size Coils are constructed of aluminum fins and internally grooved aluminum tubing Molded polymer corrosion resistant condensate drain pan is provided for all indoor coils Connection point for high voltage wiring is inside the air handler cabinet, low voltage connection is made on the outside of the air handler cabinet Concentric knockouts are provided for power connection to cabinet, Installer may pull desired hole size upto 1-3/8 in for 7/8 in conduit Constant torque, two speed X-13(ECM) motor Minor - major Series 23 in W x 21-3/8 in H return air opening 10 x 8 in blower 44 deg F maximum electric heat rise Breaker disconnect configuration One supply circuit
Rheem® Ovation Series RF1T3624MTANJAB08 Air Handler With TEV Metering, 3 ton, 36000 Btu/hr Cooling BTU, 208/240 VAC
BrandRheem®
MFG #RF1T3624MTANJAB08
Keller #1037237
My Part ##
Last Ordered#
$2,935.37 / ea
