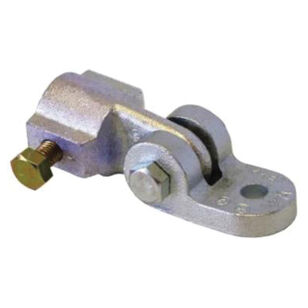

AFCON® FIG AF771 Series 766259380 Sway Brace Swivel Attachment, 1-1/4 in Pipe, Carbon Steel/Ductile Iron
AFCON® FIG AF771 Series 766259380 Sway Brace Swivel Attachment, 1-1/4 in Pipe, Carbon Steel/Ductile Iron
AFCON® Sway Brace Swivel Attachment, Series: FIG AF771 Series, 1-1/4 in Pipe, Carbon Steel/Ductile Iron, Electro-Galvanized/Plain, 5.34 in Overall Width, Additional Information: 1-1/4 in Brace Size, 1/2 to 3/4 in Anchor Size, SCH 40 Schedule Rating
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$96.67 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandANVIL®
Additional Information1-1/4 " Brace Size, 1/2 to 3/4 " Anchor Size, SCH 40 Schedule Rating
FinishElectro-Galvanized/Plain
MaterialCarbon Steel/Ductile Iron
Overall Width5.34
Pipe Size1-1/4
SeriesFIG AF771 Series
Additional Information
ASTM B633|cULus Listed|FM 1950-10/1950-13|NFPA 13|OPA-2804-10|OPM-0351-13|OSHPD Approved|UL 203a
Features & Benefits
- Field adjustable design requires no threading of the brace pipe Shear off bolt provides a visual indication that the desired torque value has been achieved True concentric loading of the brace pipe
Documents
Marketing Information
A seismic swivel attachment designed to connect brace pipe to the building structure or to a seismic structural attachment. The sway brace swivel attachment rigidly braces piping systems subjected to horizontal seismic loads. The sway brace swivel attachment may also be installed to rigidly brace piping systems subjected to vertical seismic loads. For vertical load capacities, reference OSHPD OPM-0351-13.
AFCON® FIG AF771 Series 766259380 Sway Brace Swivel Attachment, 1-1/4 in Pipe, Carbon Steel/Ductile Iron
BrandANVIL®
MFG #0500601026
Keller #1037505
My Part ##
Last Ordered#
$96.67 / ea
