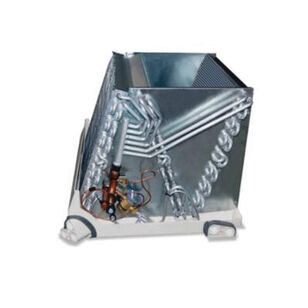

Rheem® RCF6024HTAVUA Evaporator Coil, Uncased N Coil, 5 ton, 60000 Btu/hr, Aluminum
MFG #RCF6024HTAVUA
Item #1037580
Mfr. Part #RCF6024HTAVUA
UPC #662021306914
Rheem® Evaporator Coil, RCF Series, 60000 Btu/hr BTU Rating, Convertible, Vertical Configuration, 5 ton Tonnage, R-410A Refrigerant Type, Uncased N Coil Type, 3/8 in, 3/4 in Connection, Connection Type: Sweat, Aluminum, Gray, 30-15/16 in H x 24-1/2 in W x 21-3/8 in D Dimensions
Why Create an Account?
Ability to track orders
More Options & Savings
Amazing Customer Service
$2,811.17 / ea
Out of Stock
Attributes
Additional Information
Features & Benefits
Documents
Attributes
BrandRheem®
ApplicationFor gas and oil furnace units
BTU Rating60000
Coil TypeUncased N
ColorGray
ConfigurationConvertible, Vertical
Connection Size3/8 ", 3/4 "
Connection TypeSweat
Dimensions30-15/16 " H x 24-1/2 " W x 21-3/8 " D
MaterialAluminum
Refrigerant TypeR-410A
SeriesRCF Series
Tonnage5
Additional Information
AHRI Certified, ANAB Certified, ISO 9001:2008, C/US UL Listed
Features & Benefits
Constructed of aluminum fins bonded to internally grooved aluminum tubing
Coils are tested at the factory with an extensive refrigerant leak check
Coils have copper sweat refrigerant connections
Feature two sets of 3/4 in NPT condensate drain connections for ease of connection
Chatleff metering device connections, at inlet and outlet and equalizer connections
Approved for system application with variety of Rheem® outdoor units
Condensate drain pan is constructed of high-grade, heat-resistant, corrosion-free thermal-setting material
Compatible with germicidal light system
Bi-directional airflow eliminates the need to switch any internal components from horizontal left to right
Unique drain pan design maximizes application flexibility and condensate removal
N-coil design maximizes performance and minimizes height required at installation
High-efficiency
Major series feature set change, performance change
Minor Series, component change, cost reduction, non-performance changes
