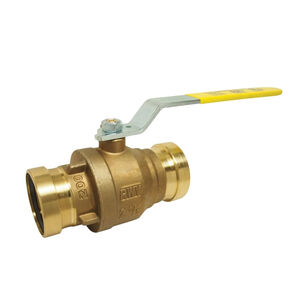

RWV® EzPress 004-40094 Ball Valve, 3 in, Press, DZR Brass, 200 psi
RWV® EzPress 004-40094 Ball Valve, 3 in, Press, DZR Brass, 200 psi
RWV® EzPress Ball Valve, 3 in Nominal, Press Connection, Full Port, 200 psi, Gas, Oil, Water Media, 2.94 in Orifice, 8.15 in Inlet to Outlet Length, 4.21 in Top to Inlet Center, 3.15 in Opening, Lever Handle Operator, 530 Cv Flow Coefficient (Cv), Material Standard: ASTM B927 C27453, DZR Brass Body, PTFE Seat, Brass Stem, EPDM Seal, Steel Handle, Brass Ball, EPDM Softgoods, Lead-Free, 15 to 160 deg F, Additional Information: 2-Piece
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,104.63 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRWV®
Additional Information2-Piece
ApplicationFor HVAC systems, oil, compressed air or gas distribution
Ball MaterialBrass
Body MaterialDZR Brass
Configuration2-Piece
Connection TypePress
Dimensions8.15" L
Domestic/ImportDomestic
Flow Coefficient (Cv)530
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length8.15
Lead-FreeYes
Material StandardASTM B927 C27453
MediaGas, Oil, Water
Nominal Size3
Opening Size3.15
Operator TypeLever Handle
Orifice Size2.94
Port TypeFull
Pressure Rating200
Seal MaterialEPDM
Seat MaterialPTFE
Series5520ABX Series
Softgoods MaterialEPDM
Stem MaterialBrass
Temperature Rating15 to 160
Top to Inlet Center4.21
Trim MaterialBrass/PTFE
Additional Information
AB1953 Certified|BAA Compliant|MSS-SP-110|NSF/ANSI 61/372
Features & Benefits
- 2-piece Body Full Port Chrome-Plated Ball Virgin PTFE Seats Double O-ring Blow-Out Proof Stem 200 psi End Connections
Marketing Information
Lead-free ball valves have spherical discs that control liquid or gas flow through a port by rotating to open or close the fluid passageway. Our lead-free ball valves offer tight shut-off, with a maximum operating temperature of 160 deg F and a maximum operating pressure of 600 psi. Different sizes are available to accommodate various flow rates.
RWV® EzPress 004-40094 Ball Valve, 3 in, Press, DZR Brass, 200 psi
BrandRWV®
MFG #5520ABX 3
Keller #1039727
