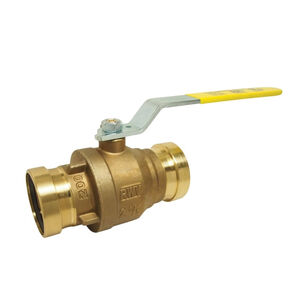

RWV® ECO-VALVE 5520ABX Series 5520ABX4 Ball Valve, 4 in, Press, Brass, 200 psi
RWV® ECO-VALVE 5520ABX Series 5520ABX4 Ball Valve, 4 in, Press, Brass, 200 psi
RWV® ECO-VALVE Ball Valve, 5520ABX Series, 4 in Nominal, Press Connection, Full Port, 2-Piece, 200 psi, Gas, Oil, Water Media, 3.94 in Orifice, 9.72 in Inlet to Outlet Length, 4.96 in Top to Inlet Center, 4.17 in Opening, Lever Handle Operator, 1200 Cv Flow Coefficient (Cv), Material Standard: ASTM B927 C27453, C28500, ASTM A36, ASTM A295 52100, Brass Body, PTFE Seat, Brass Stem, Brass/PTFE Trim, Steel Handle, Brass Ball, EPDM/PTFE Softgoods, Lead-Free, 15 to 160 deg F, 9.72 in L, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,437.15 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRWV®
ApplicationFor HVAC systems, oil, compressed air or gas distribution
Ball MaterialBrass
Body MaterialBrass
Configuration2-Piece
Connection TypePress
Dimensions9.72 " L
Domestic/ImportDomestic
Flow Coefficient (Cv)1200
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length9.72
Lead-FreeYes
Material StandardASTM B927 C27453, C28500, ASTM A36, ASTM A295 52100
MediaGas, Oil, Water
Nominal Size4
Opening Size4.17
Operator TypeLever Handle
Orifice Size3.94
Port TypeFull
Pressure Rating200
Seat MaterialPTFE
Series5520ABX Series
Softgoods MaterialEPDM/PTFE
Stem MaterialBrass
Temperature Rating15 to 160
Top to Inlet Center4.96
Trim MaterialBrass/PTFE
Additional Information
California AB1953|BAA Compliant|cTLus Listed|MSS-SP-110|NSF/ANSI 61, 372
Features & Benefits
- Chrome-plated ball Virgin PTFE seats Double O-ring Blowout-proof stem
Marketing Information
Lead-free ball valves have spherical discs that control liquid or gas flow through a port by rotating to open or close the fluid passageway. Our lead-free ball valves offer tight shut-off, with a maximum operating temperature of 160 deg F and a maximum operating pressure of 600 psi. Different sizes are available to accommodate various flow rates.
