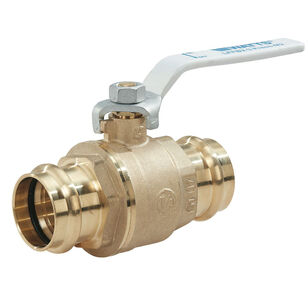

WATTS® LFFBV-3-PRESS-M2 Series 88005494 Ball Valve, 3/4 in, Press, Brass, 250 psi
WATTS® LFFBV-3-PRESS-M2 Series 88005494 Ball Valve, 3/4 in, Press, Brass, 250 psi
WATTS® Ball Valve, LFFBV-3-PRESS-M2 Series, 3/4 in Nominal, Press Connection, Full Port, 2-Piece, 250 psi, Gas, Oil, Water Media, 3/4 in Orifice, 3-7/8 in Inlet to Outlet Length, 11-5/16 in Top to Inlet Center, Lever Handle Operator, Material Standard: ASTM B88, Brass Body, PTFE Seat, Brass Stem, PTFE Seal, Brass/PTFE Trim, Brass/PTFE Packing, Steel Handle, Brass Ball, EPDM/PTFE Softgoods, Lead-Free, Finish: Brass-Coated, 0 to 250 deg F, 3-7/8 in L, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$130.50 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
ApplicationFor use in plumbing, heating and potable water applications
Ball MaterialBrass
Body MaterialBrass
Configuration2-Piece
Connection TypePress
Dimensions3-7/8 " L
Domestic/ImportDomestic
FinishBrass-Coated
Handle MaterialSteel
Inlet to Outlet Length3-7/8
Material StandardASTM B88
MediaGas, Oil, Water
Nominal Size3/4
Operator TypeLever Handle
Orifice Size3/4
Packing MaterialBrass/PTFE
Port TypeFull
Pressure Rating250
Seal MaterialPTFE
Seat MaterialPTFE
SeriesLFFBV-3-PRESS-M2 Series
Softgoods MaterialEPDM/PTFE
Stem MaterialBrass
Temperature Rating0 to 250
Top to Inlet Center11-5/16
Trim MaterialBrass/PTFE
Additional Information
cUPC Certified|NSF 61-8, 14, 372
Features & Benefits
- Bottom loaded blowout-proof stem with packing nut Press connection rated to 250 psi CWP up to 210 deg F
Documents
Marketing Information
This 3/4 in lead-free two-piece, full port, ball valve with integral press end fittings is designed for use in plumbing, heating and potable water applications. It features a lead-free brass body, adjustable packing gland and bottom loaded blowout-proof stem. It is made with integral ASTM B88 compliant press end connections that are designed for types K, L and M hard copper tubing. The press fitting is rated to 250 psi CWP up to 210 deg F.
