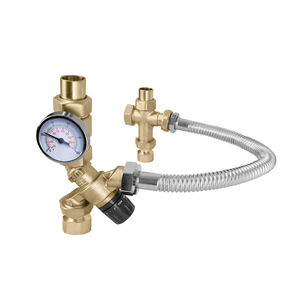

Caleffi TankMixer™ 520 Series 520510AX DHW Thermostatic Mixing Valve, 3/4 in, MNPT, 0.5 to 9 gpm, 150 psi, Brass
Caleffi TankMixer™ 520 Series 520510AX DHW Thermostatic Mixing Valve, 3/4 in, MNPT, 0.5 to 9 gpm, 150 psi, Brass
Caleffi TankMixer™ DHW Thermostatic Mixing Valve, 520 Series, 3/4 in Nominal, MNPT Connection, Number of Ports/Ways: 3-Ways, 0.5 to 9 gpm Flow Rate, 150 psi, 2 Cv Flow Coefficient (Cv), PSU/Stainless Steel Trim, PSU Seat, EPDM Seal, Brass, 2 in Gauge Dial, Water Media, 30 to 210 deg F Gauge Scale, 195 deg F, Domestic/Import: Import
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$401.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandCaleffi
Connection TypeMNPT
Domestic/ImportImport
Flow Coefficient (Cv)2
Flow Rate0.5 to 9
Gauge Dial Size2
Gauge Scale30 to 210
MaterialBrass
MediaWater
Nominal Size3/4
Number of Ports/Ways3-Ways
Pressure Rating150
Seal MaterialEPDM
Seat MaterialPSU
Series520 Series
Temperature Rating195
Trim MaterialPSU/Stainless Steel
Additional Information
ASSE 1017|Buy American Act Compliant|California HSC 116875|CSA B125.3|ICC-ES Approved|IPC Listed|IRC Listed|Maryland HB372|NPC Certified|NSF/ANSI/CAN 372|Unites States S.3874|UPC Certified|Vermont Act 193
Features & Benefits
- Complete quick-connect kit - everything needed for quick installation, including fittings, includes cold water cross with check valve to prevent cross-flow Anti-scale polymer materials - inhibits scaling on internal sliding surfaces, assuring stable temperature control and long life Accurate low flow - 0.5 gpm minimum flow for stable control for today's high efficiency fixtures Tight hot water close-off - prevents recirculation temperature creep, improves pump's aquastat service life Optional temperature gauge - local temperature indication, convenient dry well design Integral recirculation inlet port - for connecting to hot water recirculation loop, 1/2 in NPT plug included
Marketing Information
The Caleffi TankMixer™ 520_AX series kit combines a three-way thermostatic mixing valve with a cold water cross and flexible pipe for easy installation directly on a typical gas fired water heater and other water heaters that now comply with the National Appliance Energy Conservation Act (NAECA). The TankMixer™ maintains the desired output temperature of the mixed water supplied at a constant set value compensating for both temperature and pressure fluctuations of the incoming hot and cold water. The mixing valve hot inlet port closes tight to prevent temperature creep in recirculation applications. Also available as body only, for a wide variety of separately sourced end connections, the angle-style body design offers improved fluid dynamics for better performance and reduces installation labor and materials, eliminating a piping elbow in typical installations.
