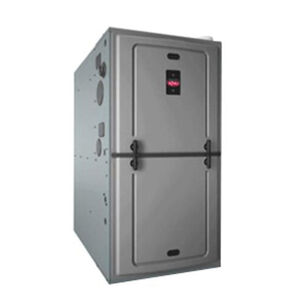

WeatherKing® Eclipse Series W95TC0701317MSA Gas Furnace, Up to 3 ton, 70000 Btu/hr Input BTU, 115 VAC, 1/2 hp, 95% AFUE
MFG #W95TC0701317MSA
Item #1042291
Mfr. Part #W95TC0701317MSA
UPC #662021422768
WeatherKing® Gas Furnace, W95T Series, 70000 Btu/hr Input BTU Rating, 115 VAC Voltage Rating, 10 A Amperage Rating, 1198 cu-ft/min Cooling, 1113 cu-ft/min Heating CFM Rating, 1/2 hp Rating, 95% AFUE Rating, 20.51 kW Wattage, 1 Phase, 60 Hz Frequency Rating, Multi-Position Configuration, Connection Type: 1/2 in NPT, Natural Gas Fuel Type, 5 Number of Speeds, 8 in W x 11 in Dia Blower Size, 17-1/2 in W x 34 in H x 29-5/8 in D Cabinet Dimensions, X-13 (Constant Torque) Motor Type, Up to 3 ton Tonnage, Direct Spark Ignition Type, 40 - 70 deg F Temperature Rise
Why Create an Account?
Ability to track orders
More Options & Savings
Amazing Customer Service
$3,378.08 / ea
In Stock
Attributes
Additional Information
Features & Benefits
Documents
Attributes
BrandRheem®
AFUE Rating95%
Amperage Rating10
ApplicationFor residential applications
Blower Size8 " W x 11 " Dia
Cabinet Dimensions17-1/2 " W x 34 " H x 29-5/8 " D
AHRI Certified, CSA Certified, ISO 9001:2008 Certified
Features & Benefits
Four way multi-poise design
Constant torque electrically commutated motor
Seven segment LED all units
Direct spark ignition for reliability and longevity
Water management system
Heat exchanger is removable for improved serviceability, aluminized steel primary and stainless steel secondary construction provide maximum corrosion-resistance and thermal fatigue reliability
Low profile 34 in cabinet ideal for space constrained installations
Blower shelf design - serviceable in all furnace orientations
Pre marked hoses insures proper system drainage
Vent with 2 or 3 in PVC
Replaceable collector box
Hemmed edges on cabinet and doors
Quarter turn fasteners for tool less access
Integrated control boards feature dip switches for easy system set up
Self priming condensate trap
3rd design Series
Revision marketing (first time release)
