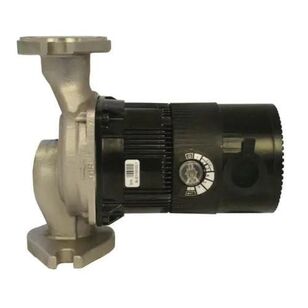

Bell & Gossett ecocirc® 19-16 6050B2004LF ECM Circulator, 4 to 60 W, 115 V, 60 Hz, 150 psi Max Pressure, 1725 rpm Motor
Bell & Gossett ecocirc® 19-16 6050B2004LF ECM Circulator, 4 to 60 W, 115 V, 60 Hz, 150 psi Max Pressure, 1725 rpm Motor
Bell & Gossett ECM Circulator, Model: ecocirc® 19-16, 4 to 60 W, 115 V, 60 Hz, 150 psi Maximum, 1725 rpm Motor Speed Rating, 1 ph, 14 to 203 deg F, Ball Bearing, Stainless Steel, 7.4 in L x 3.74 in W x 6.38 in H, Additional Information: Nylon/PPO Impeller Material, Spherical Motor
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$574.64 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandBell & Gossett
Additional InformationNylon/PPO Impeller Material, Spherical Motor
Bearing TypeBall
Dimensions7.4 " L x 3.74 " W x 6.38 " H
Frequency Rating60
IndustryHydronics
MaterialStainless Steel
Maximum Pressure150
Modelecocirc 19-16
Motor Speed Rating1725
Phase1
Power Rating4 to 60
Temperature Rating14 to 203
Voltage Rating115
Additional Information
cCSAus Certified|NSF Certified
Features & Benefits
- True variable speed - the pump speed is infinitely variable and is automatically adjusted by the controller to optimize performance and efficiency Sensor less operation - no external sensors are required Simplicity - the only moving part is the rotor/impeller unit the shaft, shaft seals and conVentional bearing bushings have been eliminated Pump and motor protection - the ecocirc® 19-16 will protect itself against, motor over load, voltage issues and pump overload
Marketing Information
Ecocirc® 19-16 is a true variable speed ECM circulator with energy efficient spherical motor technology. Higher efficiency and improved performance. The ecocirc® 19-16 is a smart, user-friendly, truly variable speed circulator which is ideally suited for use in heating, cooling and potable water application. Designed to be set once and forgotten. The on-board intelligence automatically adjusts speed to ensure maximized efficiency and accurate performance to suit a wide range of performance requirements. The ecocirc® is setting new standards! ecocirc® 19-16 is a true variable speed ECM circulator with energy efficient spherical motor technology.
Bell & Gossett ecocirc® 19-16 6050B2004LF ECM Circulator, 4 to 60 W, 115 V, 60 Hz, 150 psi Max Pressure, 1725 rpm Motor
BrandBell & Gossett
MFG #6050B2004LF
Keller #1043961
My Part ##
Last Ordered#
$574.64 / ea
