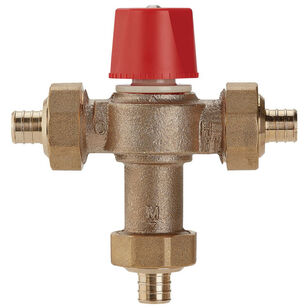

WATTS® LF1170 Series 0559144 Temperature Control Valve, 1 in Nominal, PEX, 0.5 to 23 gpm, 150 psi, 120 to 200 deg F
WATTS® LF1170 Series 0559144 Temperature Control Valve, 1 in Nominal, PEX, 0.5 to 23 gpm, 150 psi, 120 to 200 deg F
WATTS® Temperature Control Valve, LF1170 Series, 1 in Nominal, PEX Connection, 150 psi, 0.5 to 23 gpm Flow Rate, Hot Water Media, Copper Silicone Alloy Body, Stainless Steel Trim, EPDM Packing, Copper/Polysulfone Softgoods, 120 to 200 deg F, 5-7/8 in L x 5-7/8 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,001.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Body MaterialCopper Silicone Alloy
Connection TypePEX
Dimensions5-7/8 " L x 5-7/8 " H
Flow Rate0.5 to 23
MediaHot Water
Nominal Size1
Packing MaterialEPDM
Pressure Rating150
SeriesLF1170 Series
Softgoods MaterialCopper/Polysulfone
Temperature Rating120 to 200
Trim MaterialStainless Steel
WarrantyLimited
Additional Information
ASSE 1017|CSA B125|IAMPO Listed|NSF/ANSI/CAN 61, 372|UPC Certified
Features & Benefits
- Thermal actuation technology for precise temperature control Integral filter washers and check valves
Marketing Information
This 1 in lead-free hot water control valve is designed for installation on water heating equipment to provide tempered water to point-of-use fixtures and is ideal for radiant heat applications. The double throttling design combines hot and cold water control for a sensitive response to water temperature changes in the mixing chamber. It consists of a lead-free brass body, crimp end connections for PEX tubing, solid wax hydraulic principle thermostat, integral filter washers and check valves, virtual shut-off upon loss of cold water supply and a locking mechanism for the temperature setting.
WATTS® LF1170 Series 0559144 Temperature Control Valve, 1 in Nominal, PEX, 0.5 to 23 gpm, 150 psi, 120 to 200 deg F
BrandWATTS®
MFG #0559144
Keller #1045097
My Part ##
Last Ordered#
$1,001.00 / ea
