ASSE 1017 Specified|CSA Certified

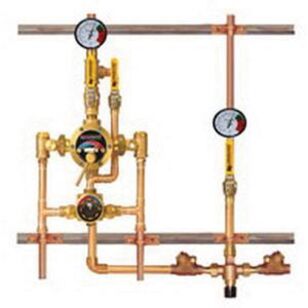

• Large type TM thermostatic water mixing valve, adjustable high-temperature limit stop, inlet check stops, wall support, outlet ball valve Small type TM thermostatic water mixing valve, adjustable high-temperature limit stop, inlet check stops, outlet ball valve Inlet manifold piping DURA-trol® solid bi-metal thermostat directly linked to valve porting to control the intake of hot and cold water and compensate for supply temperature or pressure fluctuations, DURA-trol® is highly responsive and cannot be damaged by extremes in temperature Adjustable high-temperature limit stop set for 120 deg F (49 deg C) Combination check stops, wall support Thermometer on outlet 3/4 in return loop with thermometer 3/4 in LEONARD® ARV automatic return valve, (return limiter) Check valves on either side of ARV Complete unit mounted on heavy-duty strut, for ease of installation Factory assembled and tested Up to 8 gpm recirculation flow, above 8 gpm choose RP1

Large type TM thermostatic water mixing valve, adjustable high-temperature limit stop, inlet check stops, wall support, outlet ball valve. Small Type TM thermostatic water mixing valve, adjustable high-temperature limit stop, integral check stops, outlet ball valve, Inlet manifold piping. DURA-trol® solid bi-metal thermostat directly linked to valve porting to control the intake of hot and cold water and compensate for supply temperature or pressure fluctuations. DURA-trol® is highly responsive and cannot be damaged by extremes in temperature. Adjustable high-temperature limit stop set for 120 deg F Combination check stops, unions, strainers on inlets wall support, plastic handle. Dial thermometer and pressure gauge on outlet, 3/4 in return loop with dial thermometer, Ball valve, 3/4 in LEONARD® ARV automatic return valve, parafin-based. Check valves on either side of ARV, complete unit mounted on heavy-duty strut, for ease of installation. Valve assembly rough bronze finish. Factory assembled and tested.
