Non-Potable Expansion Tank ASME Removable Heavy Duty Butyl Bladder Tank Volume 211 Gallons
Non-Potable Expansion Tank ASME Removable Heavy Duty Butyl Bladder Tank Volume 211 Gallons
Non-Potable Expansion Tank ASME Removable Heavy Duty Butyl Bladder Tank Volume 211 Gallons
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$25,249.00Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Air Precharge12 psi
Air ValveYes
Bladder MaterialButyl
Diameter36"
FinishRed
IndustryPlumbing
Inlet Connection Size1-1/2"
Inlet Connection Size Metric40 mm
Inlet Thread TypeNPT
MaterialCarbon Steel
Maximum Operating Temperature Deg F240
Maximum Working Pressure Psi125
Mount TypeFree Standing
OrientationVertical
SeriesET-RA
Stand IncludedYes
Tank Height63''
Tank MaterialCarbon Steel
Tank Volume211 gal
Weight475 lbs.
Features & Benefits
- ASME Section VIII code construction
- Heavy duty removable butyl bladder
- Precharged to 12 psi
- Carbon steel shell
- Field adjustable
Marketing Information

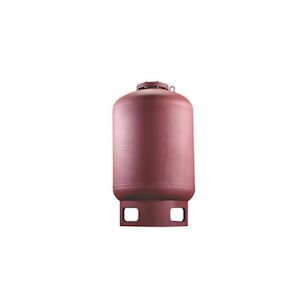

This 211 gallon pressurized expansion tank is designed to absorb the expansion forces and control the pressure in heating and cooling systems. It is an ASME Section VIII removable bladder type precharged expansion tank. The excess water is contained in the heavy duty butyl replaceable bladder preventing tank corrosion and waterlogging problems. Maximum pressure is 125 psi (8.5 bar).
Non-Potable Expansion Tank ASME Removable Heavy Duty Butyl Bladder Tank Volume 211 Gallons
BrandWATTS®
MFG #0212020
Keller #1046344
My Part ##
Last Ordered#
$25,249.00Â /Â ea
