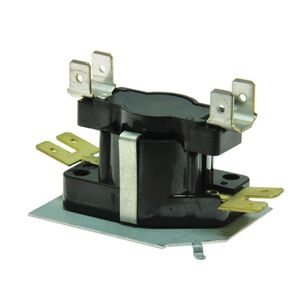

Rheem® 425077 Sequencing Relay, SPST
Rheem® 425077 Sequencing Relay, SPST
Rheem® Sequencing Relay, 24 V, 14 A at 120 V, 7 A at 230 V, 4 A at 460 V Motor FLA, 72 A at 120 V, 42 A at 230 V, 24 A at 460 V Motor LRA, SPST, 1/4 in Quick-Connect Terminal, Flush-Mount Plate with Mounting Holes Mount, 2 in Overall Width, 1-5/8 in Overall Height, Additional Information: 24 VAC/0.10 A to 0.18 A Steady State/0.35 to 1 A Peak for 0.8 s Heater Power Consumption, 1 Pole, 30 to 60 s Off Timing, 1 to 30 s On Timing, 25 A at 120 V/230 V, 12.5 A at 460 V Resistive Rating, NO Contact Bias, 125 VA at 120/230/460 V Pilot-Duty Rating
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$50.74 / ea
Out of Stock
- Attributes
Attributes
BrandRheem®
Additional Information24 VAC/0.10 A to 0.18 A Steady State/0.35 to 1 A Peak for 0.8 s Heater Power Consumption, 1 Pole, 30 to 60 s Off Timing, 1 to 30 s On Timing, 25 A at 120 V/230 V, 12.5 A at 460 V Resistive Rating, NO Contact Bias, 125 VA at 120/230/460 V Pilot-Duty Rating
Amperage Rating14 A at 120 V, 7 A at 230 V, 4 A at 460 V Motor FLA, 72 A at 120 V, 42 A at 230 V, 24 A at 460 V Motor LRA
Contact FormSPST
Mounting TypeFlush-Mount Plate with Mounting Holes
Overall Height1-5/8
Overall Width2
Terminal Type1/4 " Quick-Connect
Voltage Rating24
Rheem® 425077 Sequencing Relay, SPST
BrandRheem®
MFG #425077
Keller #1046421
My Part ##
Last Ordered#
$50.74 / ea
