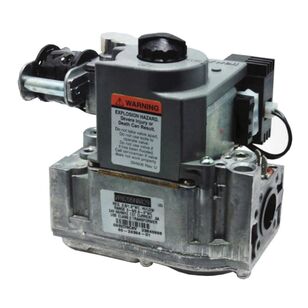

Honeywell VR8205N8829/B Gas Valve, 1/2 in, NPT, 1/2 psi
Honeywell VR8205N8829/B Gas Valve, 1/2 in, NPT, 1/2 psi
Honeywell Gas Valve, 1/2 in Nominal, NPT Connection, 1/2 psi Pressure, 2 Stage, Dual Direct Spark, Hot Surface Ignition, Electrical Connection: 1/4 in Male Quick-Connect Terminal, 24 VAC at 50/60 Hz, 20000 Btu/hr Minimum, 150000 Btu/hr at 1 in-WC Pressure Drop Nominal, Natural Gas Fuel, NPT with Plug Pressure Tap Hose Connection, -40 to 175 deg F, Dimensions: 4-5/8 in H x 4-1/8 in W x 2-11/16 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$616.65 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Connection TypeNPT
Dimensions4-5/8 " H x 4-1/8 " W x 2-11/16 " D
Electrical Connection1/4 " Male Quick-Connect Terminal
Fuel TypeNatural Gas
Hose Connection TypeNPT with Plug Pressure Tap
Ignition TypeDual Direct Spark, Hot Surface
Nominal Capacity20000 Btu/hr Minimum, 150000 Btu/hr at 1 "-WC Pressure Drop
Nominal Size1/2
Number of Stages2
Pressure Rating1/2
Temperature Rating-40 to 175
Voltage Rating24 VAC at 50/60 Hz
Additional Information
AGA 4214|CSA 112395|UL MH5323
Features & Benefits
- Controls include manual valve, two automatic operators and pressure regulator Provide two automatic valves Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends Diaphragm operated second automatic valve opens under control of regulator, closes if gas or power supply is interrupted Meet codes requiring dual safety shut-off All adjustments, wiring connections and pilot outlet are accessible from top of gas control On-off lighting sequence Used with S89C,E,F and S87 Series 5 and later 0 to 90 deg in any direction from the upright position of the gas control knob, including vertically-mounting Straight through configuration 0.5 A anticipator setting
Documents
Honeywell VR8205N8829/B Gas Valve, 1/2 in, NPT, 1/2 psi
BrandRheem®
MFG #60-24394-01
Keller #1046671
