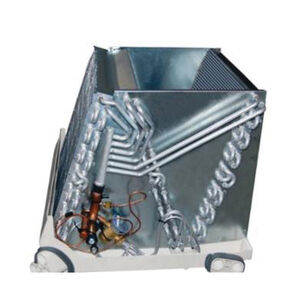

Rheem® Ovation Series RCF2421UEAMCA Evaporator Coil, Cased N Coil, 2 ton, 24000 Btu/hr, 1400 to 1600 cfm, Aluminum
Rheem® Ovation Series RCF2421UEAMCA Evaporator Coil, Cased N Coil, 2 ton, 24000 Btu/hr, 1400 to 1600 cfm, Aluminum
Rheem® Evaporator Coil, RCF Series, 24000 Btu/hr BTU Rating, Multi-Position Configuration, 1400 to 1600 cfm Rating, 2 ton Tonnage, R-410A Refrigerant Type, Cased N Coil Type, 3/8 in, 7/8 in Connection, Connection Type: Sweat, 3 Number of Rows, 7.6 sq-ft Face Area, 13 in Fin Size, Aluminum, Gray, 34-1/2 in H x 21 in W x 21-11/16 in D Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,687.08 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
ApplicationFor gas and oil furnace units
BTU Rating24000
CFM Rating1400 to 1600
Coil TypeCased N
ColorGray
ConfigurationMulti-Position
Connection Size3/8 ", 7/8 "
Connection TypeSweat
Dimensions34-1/2 " H x 21 " W x 21-11/16 " D
Face Area7.6
Fin Size13
IndustryHVAC
MaterialAluminum
Number of Rows3
Refrigerant TypeR-410A
SeriesRCF Series
Tonnage2
Additional Information
AHRI Certified, ANAB Certified, ISO 9001:2015 Certified, C/US UL Listed
Features & Benefits
- Constructed of aluminum fins bonded to internally grooved aluminum tubing Coils are tested at the factory with an extensive refrigerant leak check Coils have copper sweat refrigerant connections Feature two sets of 3/4 in NPT condensate drain connections for ease of connection Chatleff metering device connections, at inlet and outlet of TXV or EEV and equalizer connections (TXV only) Approved for system application with variety of Rheem® outdoor units Condensate drain pan is constructed of high-grade, heat-resistant, corrosion-free thermal-setting material Compatible with germicidal light system Bi-directional airflow eliminates the need to switch any internal components from horizontal left to right Unique drain pan design maximizes application flexibility and condensate removal N-coil design maximizes performance and minimizes height required at installation Major series feature set change, performance change Minor Series, component change, cost reduction, non-performance changes
Rheem® Ovation Series RCF2421UEAMCA Evaporator Coil, Cased N Coil, 2 ton, 24000 Btu/hr, 1400 to 1600 cfm, Aluminum
BrandRheem®
MFG #RCF2421UEAMCA
Keller #1047321
My Part ##
Last Ordered#
$1,687.08 / ea
