1/4 IN Lead Free Pressure Temperature Gauge Center Back Entry 3 IN Dial 0 to 75 psi Ext Element
1/4 IN Lead Free Pressure Temperature Gauge Center Back Entry 3 IN Dial 0 to 75 psi Ext Element
1/4 IN Lead Free Pressure Temperature Gauge Center Back Entry 3 IN Dial 0 to 75 psi Ext Element
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$288.00Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Case MaterialSteel
Depth3"
Dial Size3''
Entry StyleBack
FinishBlack Enamel
Height4"
IndustryPlumbing
Inlet Connection Size1/4"
Inlet Connection TypeMale Threaded
Maximum Operating Temperature Deg F320
Minimum Temperature Deg F60
Pressure Scale0 to 75 psi
Prop 65 WarningYes
Sensing ElementYes
SeriesLFDPTG-3
Stem Shaft MaterialLead Free Brass
Temperature Range60 to 320 deg F
Weight0.52 lbs.
Width5"
Shipping Dimensions (L x W x H)3" x 5" x 4"
Features & Benefits
- Black enamel steel case
- Kostil polymer window
- Copper alloy Bourdon sensing element
- Bimetal spiral spring sensing element
Documents
Marketing Information

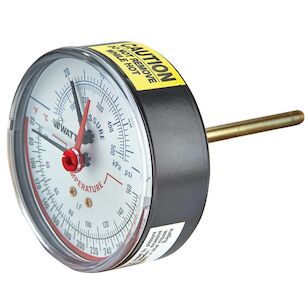

This 1/4 inch lead free center back entry pressure temperature gauge is used in commercial, residential, and institutional HVAC applications. It features a black enamel steel case, Kostil polymer window, 1/2 inch NPT connection, bimetal spiral spring extended temperature element, and copper alloy Bourdon tube pressure element with ASME Type B accuracy. This gauge features a 3 inch dial with pressure rating scale from 0 to 75 psi and temperature range 60 to 320 degrees F.
1/4 IN Lead Free Pressure Temperature Gauge Center Back Entry 3 IN Dial 0 to 75 psi Ext Element
BrandWATTS®
MFG #0121725
Keller #1047672
