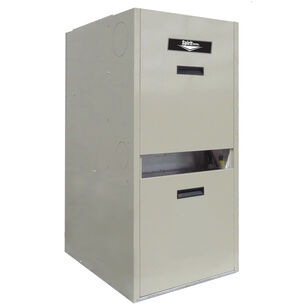

Thermo Pride® VH8FA119T60B Oil Furnace, 156250/40000/119000 Btu/hr Input, 120 VAC, 1 hp, 85 % AFUE, 1 ph
Thermo Pride® VH8FA119T60B Oil Furnace, 156250/40000/119000 Btu/hr Input, 120 VAC, 1 hp, 85 % AFUE, 1 ph
Thermo Pride® Oil Furnace, Series: VH8, 120 VAC, 1 hp, 60 Hz, 1 -Phase, 156250/40000/119000 Btu/hr Input BTU Rating, 132000/119000/101000 Btu/hr Output BTU Rating, 85 % AFUE, 20 A Fuse, ECM Variable Speed Blower Motor, 66 deg F Rise, 50-1/8 in H x 24-1/2 in W x 36-1/2 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$7,267.80 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandThermo Pride®
AFUE Rating85
Dimensions50-1/8 " H x 24-1/2 " W x 36-1/2 " D
Frequency Rating60
Fuse Rating20
HP Rating1
IndustryHVAC
Input BTU Rating156250/40000/119000
Motor TypeECM Variable Speed Blower
Output BTU Rating132000/119000/101000
Phase1
SeriesVH8
Temperature Rise66
Voltage Rating120
Additional Information
Energy Star Certified
Features & Benefits
- With Beckett AFG burner Front flue Heavy-duty 22 ga cabinet with powder-coated finish for long-lasting durability Dual cleanout ports and 40 V-A transformer and fan control are factory wired for easy add-on cooling installation 5 ton cooling capacity No sharp edges folded and flattened and independent door removal Spirit oil furnaces are standard equipped with a multi-speed direct drive blower motor, the entire blower assembly can be removed for cleaning 20 in W x 20 in D supply air outlet 23-3/4 in H x 19 in D return air outlet 7 in Dia flue The full cabinet foil-faced high density fiberglass insulation reduces heat loss and sound levels
Thermo Pride® VH8FA119T60B Oil Furnace, 156250/40000/119000 Btu/hr Input, 120 VAC, 1 hp, 85 % AFUE, 1 ph
BrandThermo Pride®
MFG #VH8FA119T60B
Keller #1048890
