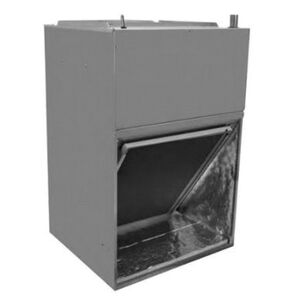

Rheem® RF1P1821SPANJAN00417 Air Handler With Piston Metering, 1.5 ton, 18000 Btu/hr BTU, 600 cfm, 208/240 VAC, 5.3 kW
Rheem® RF1P1821SPANJAN00417 Air Handler With Piston Metering, 1.5 ton, 18000 Btu/hr BTU, 600 cfm, 208/240 VAC, 5.3 kW
Rheem® Air Handler, RF1P Series, 1.5 ton Nominal Capacity, 18000 Btu/hr BTU Rating, 208/240 VAC Voltage Rating, 5.3 kW Wattage, 1/5 hp Rating, 60 Hz Frequency Rating, 1 ph Phase, 600 cfm Rating, 13 SEER Rating, R-410A Refrigerant Type, 1 Number of Stages, Steel, 21-1/2 in W x 17 in D x 36 in H Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,685.95 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
BTU Rating18000
CFM Rating600
Dimensions21-1/2 " W x 17 " D x 36 " H
Frequency Rating60
HP Rating1/5
MaterialSteel
Nominal Capacity1.5
Number of Stages1
Phase1
Refrigerant TypeR-410A
SEER Rating13
SeriesRF1P
Voltage Rating208/240
Wattage5.3
Additional Information
AHRI Certified, ISO 9001:2008, C/US UL Listed
Features & Benefits
- Rugged wall steel cabinet construction, designed for added strength and versatility 1 in foil faced insulation for excellent thermal and sound performance Four leg blower motor mount Indoor coil design provides low air side pressure drop, high-performance and extremely compact size Coils are constructed of aluminum fins and internally grooved aluminum tubing Molded polymer corrosion resistant condensate drain pan is provided for all indoor coils Connection point for high voltage wiring is inside the air handler cabinet, low voltage connection is made on the outside of the air handler cabinet PSC, two speed blower motor Minor - major Series 20 in W x 17-7/16 in H return air opening 10 x 6 in blower 54 deg F maximum electric heat rise Comes with float switch
Rheem® RF1P1821SPANJAN00417 Air Handler With Piston Metering, 1.5 ton, 18000 Btu/hr BTU, 600 cfm, 208/240 VAC, 5.3 kW
BrandRheem®
MFG #RF1P1821SPANJAN00417
Keller #1049664
