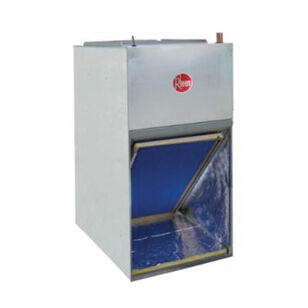

Rheem® RF1P2421SPANJAN00417 Air Handler With Piston Metering, 2 ton, 24000 Btu/hr Cooling BTU, 800 cfm, 208/240 VAC
Rheem® RF1P2421SPANJAN00417 Air Handler With Piston Metering, 2 ton, 24000 Btu/hr Cooling BTU, 800 cfm, 208/240 VAC
Rheem® Air Handler, RF1P Series, 2 ton Nominal Capacity, 24000 Btu/hr Cooling BTU Rating, 208/240 VAC Voltage Rating, 1.5 A Circuit, 3 A Minimum Circuit Amperage Rating, 7.03 kW Cooling Wattage, 1/5 hp Rating, 60 Hz Frequency Rating, 1 ph Phase, 800 cfm Rating, 13 SEER Rating, R-410A Refrigerant Type, 15 A Fuse Rating, 20 x 20 x 1 in Filter Size, 1 Number of Stages, Steel, 21-1/2 in W x 17 in D x 36 in H Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,691.93 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating1.5 A Circuit, 3 A Minimum Circuit
BTU Rating24000 Btu/hr Cooling
CFM Rating800
Dimensions21-1/2 " W x 17 " D x 36 " H
Filter Size20 x 20 x 1
Frequency Rating60
Fuse Rating15
HP Rating1/5
IndustryHVAC
MaterialSteel
Nominal Capacity2
Number of Stages1
Phase1
Refrigerant TypeR-410A
SEER Rating13
SeriesRF1P
Voltage Rating208/240
Wattage7.03 kW Cooling
Additional Information
AHRI Certified, ISO 9001:2008, C/US UL Listed
Features & Benefits
- Rugged wall steel cabinet construction, designed for added strength and versatility 1 in foil faced insulation for excellent thermal and sound performance Four leg blower motor mount Indoor coil design provides low air side pressure drop, high-performance and extremely compact size Coils are constructed of aluminum fins and internally grooved aluminum tubing Molded polymer corrosion resistant condensate drain pan is provided for all indoor coils Connection point for high voltage wiring is inside the air handler cabinet, low voltage connection is made on the outside of the air handler cabinet Concentric knockouts are provided for power connection to cabinet, Installer may pull desired hole size upto 1-3/8 in for 7/8 in conduit PSC, two speed blower motor Minor - major Series 20 in W x 17-7/16 in H return air opening 10 x 6 in blower 44 deg F maximum electric heat rise Factory installed condensate float switch which shuts off the outdoor unit in event the condensate pan becomes clogged No heat
Rheem® RF1P2421SPANJAN00417 Air Handler With Piston Metering, 2 ton, 24000 Btu/hr Cooling BTU, 800 cfm, 208/240 VAC
BrandRheem®
MFG #RF1P2421SPANJAN00417
Keller #1049693
