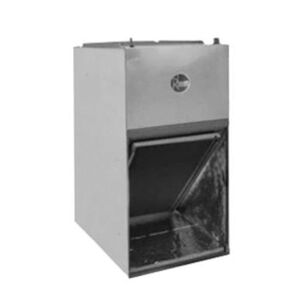

Rheem® RF1P3024SPANJAB08 Air Handler With Piston Metering, 2.5 ton, 30000 Btu/hr Cooling BTU, 1000 cfm, 208/240 VAC
Rheem® RF1P3024SPANJAB08 Air Handler With Piston Metering, 2.5 ton, 30000 Btu/hr Cooling BTU, 1000 cfm, 208/240 VAC
Rheem® Air Handler, RF1P Series, 2.5 ton Nominal Capacity, 30000 Btu/hr Cooling BTU Rating, 208/240 VAC Voltage Rating, 26/30 A Circuit, 36/41 A Minimum Circuit, 2.5 A Motor Amperage Rating, 8.8 kW Cooling, 8 kW Heating Wattage, 1/4 hp Rating, 60 Hz Frequency Rating, 1 ph Phase, 1000 cfm Rating, 13 SEER Rating, R-410A Refrigerant Type, 40/45 A Fuse Rating, 20 x 25 x 1 in Filter Size, 1 Number of Stages, Steel, 24 in W x 21 in D x 36 in H Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,156.85 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating26/30 A Circuit, 36/41 A Minimum Circuit, 2.5 A Motor
BTU Rating30000 Btu/hr Cooling
CFM Rating1000
Dimensions24 " W x 21 " D x 36 " H
Filter Size20 x 25 x 1
Frequency Rating60
Fuse Rating40/45
HP Rating1/4
IndustryHVAC
MaterialSteel
Nominal Capacity2.5
Number of Stages1
Phase1
Refrigerant TypeR-410A
SEER Rating13
SeriesRF1P
Voltage Rating208/240
Wattage8.8 kW Cooling, 8 kW Heating
Additional Information
AHRI Certified, ISO 9001:2008, C/US UL Listed
Features & Benefits
- Rugged wall steel cabinet construction, designed for added strength and versatility 1 in foil faced insulation for excellent thermal and sound performance Four leg blower motor mount Traditional open wire element design for heat applications Indoor coil design provides low air side pressure drop, high-performance and extremely compact size Coils are constructed of aluminum fins and internally grooved aluminum tubing Molded polymer corrosion resistant condensate drain pan is provided for all indoor coils Connection point for high voltage wiring is inside the air handler cabinet, low voltage connection is made on the outside of the air handler cabinet Concentric knockouts are provided for power connection to cabinet, Installer may pull desired hole size upto 1-3/8 in for 7/8 in conduit PSC, two speed blower motor Minor - major Series 23 in W x 21-3/8 in H return air opening 10 x 8T in blower 44 deg F maximum electric heat rise Breaker disconnect configuration One supply circuit
Rheem® RF1P3024SPANJAB08 Air Handler With Piston Metering, 2.5 ton, 30000 Btu/hr Cooling BTU, 1000 cfm, 208/240 VAC
BrandRheem®
MFG #RF1P3024SPANJAB08
Keller #1049705
My Part ##
Last Ordered#
$2,156.85 / ea
