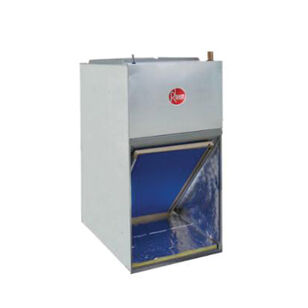

Rheem® Classic Series RHAL-FR18PJB05A Air Handler With Piston Metering, 1.5 ton, 18000 Btu/hr BTU, 600 cfm, 208/240 VAC
Rheem® Classic Series RHAL-FR18PJB05A Air Handler With Piston Metering, 1.5 ton, 18000 Btu/hr BTU, 600 cfm, 208/240 VAC
Rheem® Air Handler, RHAL Series, 1.5 ton Nominal Capacity, 18000 Btu/hr BTU Rating, 208/240 VAC Voltage Rating, 5.3 kW Wattage, 1/5 hp Rating, 60 Hz Frequency Rating, 1 ph Phase, 600 cfm Rating, 13 SEER Rating, R-410A, R-22 Refrigerant Type, 20 x 20 x 1 in Filter Size, Steel, 21-1/2 in W x 17 in D x 36 in H Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,913.01 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
BTU Rating18000
CFM Rating600
Dimensions21-1/2 " W x 17 " D x 36 " H
Filter Size20 x 20 x 1
Frequency Rating60
HP Rating1/5
IndustryHVAC
MaterialSteel
Nominal Capacity1.5
Phase1
Refrigerant TypeR-410A, R-22
SEER Rating13
SeriesRHAL
Voltage Rating208/240
Wattage5.3
Additional Information
AHRI Certified, ISO 9001:2008, C/US UL Listed
Features & Benefits
- Rugged wall steel cabinet construction, designed for added strength and versatility 1 in foil faced insulation for excellent thermal and sound performance Four leg blower motor mount Indoor coil design provides low air side pressure drop, high-performance and extremely compact size Coils are constructed of aluminum fins and internally grooved copper tubing Molded polymer corrosion resistant condensate drain pan is provided for all indoor coils Connection point for high voltage wiring is inside the air handler cabinet, low voltage connection is made on the outside of the air handler cabinet Concentric knockouts are provided for power connection to cabinet PSC, two speed blower motor 20 in W x 17-7/16 in H return air opening 10 x 6 in blower 54 deg F maximum electric heat rise Breaker disconnect configuration Design variation
Rheem® Classic Series RHAL-FR18PJB05A Air Handler With Piston Metering, 1.5 ton, 18000 Btu/hr BTU, 600 cfm, 208/240 VAC
BrandRheem®
MFG #RHAL-FR18PJB05A
Keller #1049802
My Part ##
Last Ordered#
$1,913.01 / ea
