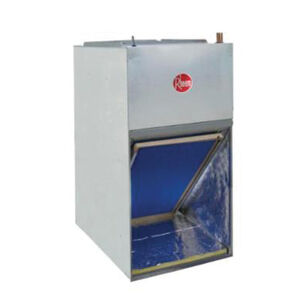

Rheem® RHAL-FR24PJB03A417 Air Handler With Piston Metering, 2 ton, 24000 Btu/hr Cooling BTU, 800 cfm, 208/240 VAC
Rheem® RHAL-FR24PJB03A417 Air Handler With Piston Metering, 2 ton, 24000 Btu/hr Cooling BTU, 800 cfm, 208/240 VAC
Rheem® Air Handler, RHAL Series, RHAL-24 Model, 2 ton Nominal Capacity, 24000 Btu/hr Cooling BTU Rating, 208/240 VAC Voltage Rating, 10.8/12.5 A Circuit, 16/18 A Minimum Circuit, 1.5 A Motor Amperage Rating, 7.03 kW Cooling, 3 kW Heating Wattage, 1/5 hp Rating, 60 Hz Frequency Rating, 1 ph Phase, 800 cfm Rating, 13 SEER Rating, R-410A, R-22 Refrigerant Type, 20 A Fuse Rating, 20 x 20 x 1 in Filter Size, Steel, 21-1/2 in W x 17 in D x 36 in H Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,979.71 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating10.8/12.5 A Circuit, 16/18 A Minimum Circuit, 1.5 A Motor
BTU Rating24000 Btu/hr Cooling
CFM Rating800
Dimensions21-1/2 " W x 17 " D x 36 " H
Filter Size20 x 20 x 1
Frequency Rating60
Fuse Rating20
HP Rating1/5
IndustryHVAC
MaterialSteel
ModelRHAL-24
Nominal Capacity2
Phase1
Refrigerant TypeR-410A, R-22
SEER Rating13
SeriesRHAL
Voltage Rating208/240
Wattage7.03 kW Cooling, 3 kW Heating
Additional Information
AHRI Certified, ISO 9001:2008, C/US UL Listed
Features & Benefits
- Rugged wall steel cabinet construction, designed for added strength and versatility 1 in foil faced insulation for excellent thermal and sound performance Four leg blower motor mount Indoor coil design provides low air side pressure drop, high-performance and extremely compact size Coils are constructed of aluminum fins and internally grooved copper tubing Molded polymer corrosion resistant condensate drain pan is provided for all indoor coils Connection point for high voltage wiring is inside the air handler cabinet, low voltage connection is made on the outside of the air handler cabinet Concentric knockouts are provided for power connection to cabinet, Installer may pull desired hole size upto 1-3/8 in for 7/8 in conduit PSC, two speed blower motor 20 in W x 17-7/16 in H return air opening 10 x 6 in blower 44 deg F maximum electric heat rise Breaker disconnect configuration Design variation Factory installed condensate float switch which shuts off the outdoor unit in event the condensate pan becomes clogged One supply circuit
Rheem® RHAL-FR24PJB03A417 Air Handler With Piston Metering, 2 ton, 24000 Btu/hr Cooling BTU, 800 cfm, 208/240 VAC
BrandRheem®
MFG #RHAL-FR24PJB03A417
Keller #1049809
