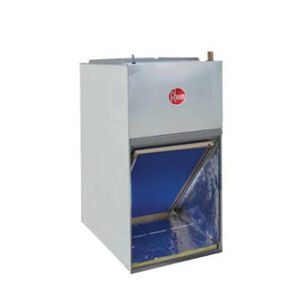

Rheem® Eclipse Series RHBL-FR24TJB10A Air Handler With TXV Metering, 2 ton, 24000 Btu/hr BTU, 600 to 800 cfm, 7.03 kW
Rheem® Eclipse Series RHBL-FR24TJB10A Air Handler With TXV Metering, 2 ton, 24000 Btu/hr BTU, 600 to 800 cfm, 7.03 kW
Rheem® Air Handler, RHBL Series, 2 ton Nominal Capacity, 24000 Btu/hr BTU Rating, 208/240 VAC Voltage Rating, 7.03 kW Wattage, 1/3 hp Rating, 60 Hz Frequency Rating, 1 ph Phase, 600 to 800 cfm Rating, 14.5 SEER Rating, R-410A Refrigerant Type, 20 x 20 x 1 in Filter Size, Steel, 21-1/2 in W x 17 in D x 36 in H Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,746.11 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
BTU Rating24000
CFM Rating600 to 800
Dimensions21-1/2 " W x 17 " D x 36 " H
Filter Size20 x 20 x 1
Frequency Rating60
HP Rating1/3
IndustryHVAC
MaterialSteel
Nominal Capacity2
Phase1
Refrigerant TypeR-410A
SEER Rating14.5
SeriesRHBL
Voltage Rating208/240
Wattage7.03
Additional Information
AHRI Certified, ISO 9001:2008, C/US UL Listed
Features & Benefits
- Rugged wall steel cabinet construction, designed for added strength and versatility 1 in foil faced insulation for excellent thermal and sound performance Four leg blower motor mount Indoor coil design provides low air side pressure drop, high-performance and extremely compact size Coils are constructed of aluminum fins and internally grooved copper tubing Molded polymer corrosion resistant condensate drain pan is provided for all indoor coils Connection point for high voltage wiring is inside the air handler cabinet, low voltage connection is made on the outside of the air handler cabinet Concentric knockouts are provided for power connection to cabinet X-13(ECM), two speed blower motor 20 in W x 17-7/16 in H return air opening 10 x 6 in blower 44 deg F maximum electric heat rise Breaker disconnect configuration Design variation
Rheem® Eclipse Series RHBL-FR24TJB10A Air Handler With TXV Metering, 2 ton, 24000 Btu/hr BTU, 600 to 800 cfm, 7.03 kW
BrandRheem®
MFG #RHBL-FR24TJB10A
Keller #1049847
