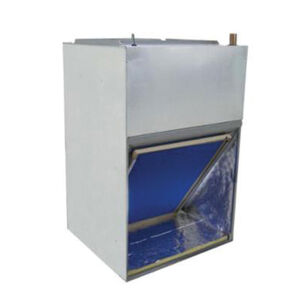

Rheem® RHBL-FR36TJB05A417 Air Handler With TXV Metering, 3 ton, 36000 Btu/hr Cooling BTU, 1000 to 1200 cfm, 208/240 VAC
MFG #RHBL-FR36TJB05A417
Item #1049865
Mfr. Part #RHBL-FR36TJB05A417
UPC #662021282720
Rheem® Air Handler, RHBL Series, RHBL-36 Model, 3 ton Nominal Capacity, 36000 Btu/hr Cooling BTU Rating, 208/240 VAC Voltage Rating, 17.3/20 A Circuit, 25/29 A Minimum Circuit, 2.5 A Motor Amperage Rating, 10.6 kW Cooling, 5 kW Heating Wattage, 1/2 hp Rating, 60 Hz Frequency Rating, 1 ph Phase, 1000 to 1200 cfm Rating, 14.5 SEER Rating, R-410A Refrigerant Type, 25/30 A Fuse Rating, 20 x 25 x 1 in Filter Size, Steel, 24 in W x 21 in D x 36 in H Dimensions
Why Create an Account?
Ability to track orders
More Options & Savings
Amazing Customer Service
$3,071.95 / ea
Out of Stock
Attributes
Additional Information
Features & Benefits
Documents
Attributes
BrandRheem®
Amperage Rating17.3/20 A Circuit, 25/29 A Minimum Circuit, 2.5 A Motor
BTU Rating36000 Btu/hr Cooling
CFM Rating1000 to 1200
Dimensions24 " W x 21 " D x 36 " H
Filter Size20 x 25 x 1
Frequency Rating60
Fuse Rating25/30
HP Rating1/2
IndustryHVAC
MaterialSteel
ModelRHBL-36
Nominal Capacity3
Phase1
Refrigerant TypeR-410A
SEER Rating14.5
SeriesRHBL
Voltage Rating208/240
Wattage10.6 kW Cooling, 5 kW Heating
Additional Information
AHRI Certified, ISO 9001:2008, C/US UL Listed
Features & Benefits
Rugged wall steel cabinet construction, designed for added strength and versatility
1 in foil faced insulation for excellent thermal and sound performance
Four leg blower motor mount
Indoor coil design provides low air side pressure drop, high-performance and extremely compact size
Coils are constructed of aluminum fins and internally grooved copper tubing
Molded polymer corrosion resistant condensate drain pan is provided for all indoor coils
Connection point for high voltage wiring is inside the air handler cabinet, low voltage connection is made on the outside of the air handler cabinet
Concentric knockouts are provided for power connection to cabinet, Installer may pull desired hole size upto 1-3/8 in for 7/8 in conduit
X-13(ECM), two speed blower motor
23 in W x 21-3/8 in H return air opening
10 x 8 in blower
44 deg F maximum electric heat rise
Breaker disconnect configuration
Design variation
Factory installed condensate float switch which shuts off the outdoor unit in event the condensate pan becomes clogged
One supply circuit
