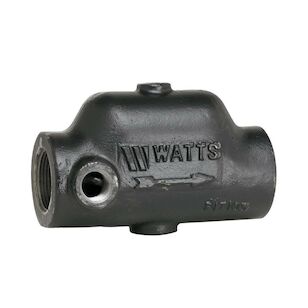

1 1/4 IN Cast Iron Air Separator with Feed Water Tapping
1 1/4 IN Cast Iron Air Separator with Feed Water Tapping
1 1/4 IN Cast Iron Air Separator with Feed Water Tapping
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$108.00Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Depth3.69"
Height7.25"
Hydronic Item TypeAir Separator
IndustryPlumbing
Inlet Connection Size1-1/4"
Inlet Connection Size Metric32 mm
Inlet Connection TypeFemale Threaded
MaterialCast Iron
Maximum Operating Temperature Deg F275
Maximum Pressure Psi80
Maximum Temperature Deg F275
Maximum Water Pressure Psi80
Maximum Working Pressure Psi80
Outlet Connection Size1-1/4"
Outlet Connection TypeFemale Threaded
SeriesAS
Temperature Range33 to 275 deg F
Weight5 lbs.
Width3.5"
Shipping Dimensions (L x W x H)3.687" x 3.5" x 7.25"
Features & Benefits
- Tappings on each side
- Heavy cast iron construction
- Provides complete, continuous purging and venting of air
- Efficient separation of air
Documents
Marketing Information
This 1 1/4 IN air separator is used in commercial and residential, hydronic heating applications to separate air from water in the piping system. It consists of a heavy, cast iron body construction with a 1/2 IN female threaded connection for an expansion tank, and a 1/8 IN female threaded connection for a float vent. It provides continuous purging and venting of air in the system when installed with Watts Model ET expansion tank and Model FV4 float-vent. Maximum pressure is 125 psi (8.6 bar).
1 1/4 IN Cast Iron Air Separator with Feed Water Tapping
BrandWATTS®
MFG #0858558
Keller #1050037
