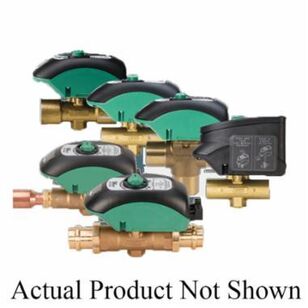

Taco Comfort Solutions® Z075T3-2 Valve, 3/4 in, NPT, 3.3 Cv, Brass, Chrome-Plated
Taco Comfort Solutions® Z075T3-2 Valve, 3/4 in, NPT, 3.3 Cv, Brass, Chrome-Plated
Taco Comfort Solutions® Valve, 3/4 in Nominal, NPT Connection, Number of Ways/Position: 3-Ways, 300 psi, 3.3 Cv Flow Coefficient (Cv), Manual Override Button Operator, Brass Stem, Brass Trim, EPDM Disc, PTFE Seat, Brass, Finish: Chrome-Plated, 11.44 W Power Consumption, 50% Glycol, Water Service, Normally Open, Normally Closed, 0.48 A, 24 VAC, 1.44 W, VA Rating: 40 VA, 20 to 220 deg F, 5-1/8 in H x 5-5/16 in W x 2-3/8 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$413.00 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandTaco Comfort Solutions®
Amperage Rating0.48
ConfigurationNormally Open, Normally Closed
Connection TypeNPT
Dimensions5-1/8 " H x 5-5/16 " W x 2-3/8 " D
Disc MaterialEPDM
FinishChrome-Plated
Flow Coefficient (Cv)3.3
MaterialBrass
Nominal Size3/4
Number of Ways/Position3-Ways
Operator TypeManual Override Button
Power Consumption11.44
Power Rating1.44
Pressure Rating300
Seat MaterialPTFE
Service Type50% Glycol, Water
Stem MaterialBrass
Temperature Rating20 to 220
Trim MaterialBrass
VA Rating40
Voltage Rating24
Features & Benefits
- Up to 93 percent less energy usage Universal installation orientation Usable on condensing chilled water installations 12 valves on one 40 VA transformer Multi-function LED assists with troubleshooting Quick-connect wiring Push button actuator replacement Easy wire quick connections manual override button Positional indicator
Documents
Marketing Information
The taco zone Sentry® zone valve enhances the overall performance of any zone valve system. The unique patented technology in the zone Sentry® utilizes a microcircuit based logic to control a gear driven electronic actuator which drives a ball valve based body design. All this adds up to a zone valve that leads the industry in energy efficiency, flow capacity (Cv), shut-off pressure rating, ease of installation, diagnostic capability and the number of valves (12) that can be use on a standard 40 VA transformer.
