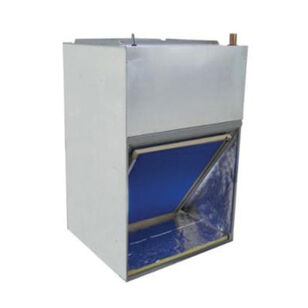

Rheem® Eclipse Series RHBL-FR36TJN00A Air Handler With TXV Metering, 3 ton, 36000 Btu/hr Cooling BTU, 1000 to 1200 cfm
Rheem® Eclipse Series RHBL-FR36TJN00A Air Handler With TXV Metering, 3 ton, 36000 Btu/hr Cooling BTU, 1000 to 1200 cfm
Rheem® Air Handler, RHBL Series, RHBL-36 Model, 3 ton Nominal Capacity, 36000 Btu/hr Cooling BTU Rating, 208/240 VAC Voltage Rating, 2.7 A Circuit, 4 A Minimum Circuit Amperage Rating, 10.6 kW Cooling Wattage, 1/2 hp Rating, 60 Hz Frequency Rating, 1 ph Phase, 1000 to 1200 cfm Rating, 14.5 SEER Rating, R-410A Refrigerant Type, 15 A Fuse Rating, 20 x 25 x 1 in Filter Size, Steel, 24 in W x 21 in D x 36 in H Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,715.35 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating2.7 A Circuit, 4 A Minimum Circuit
BTU Rating36000 Btu/hr Cooling
CFM Rating1000 to 1200
Dimensions24 " W x 21 " D x 36 " H
Filter Size20 x 25 x 1
Frequency Rating60
Fuse Rating15
HP Rating1/2
IndustryHVAC
MaterialSteel
ModelRHBL-36
Nominal Capacity3
Phase1
Refrigerant TypeR-410A
SEER Rating14.5
SeriesRHBL
Voltage Rating208/240
Wattage10.6 kW Cooling
Additional Information
AHRI Certified, ISO 9001:2008, C/US UL Listed
Features & Benefits
- Rugged wall steel cabinet construction, designed for added strength and versatility 1 in foil faced insulation for excellent thermal and sound performance Four leg blower motor mount Indoor coil design provides low air side pressure drop, high-performance and extremely compact size Coils are constructed of aluminum fins and internally grooved copper tubing Molded polymer corrosion resistant condensate drain pan is provided for all indoor coils Connection point for high voltage wiring is inside the air handler cabinet, low voltage connection is made on the outside of the air handler cabinet Concentric knockouts are provided for power connection to cabinet, Installer may pull desired hole size upto 1-3/8 in for 7/8 in conduit X-13(ECM), two speed blower motor 23 in W x 21-3/8 in H return air opening 10 x 8 in blower 44 deg F maximum electric heat rise No heat Design variation
Rheem® Eclipse Series RHBL-FR36TJN00A Air Handler With TXV Metering, 3 ton, 36000 Btu/hr Cooling BTU, 1000 to 1200 cfm
BrandRheem®
MFG #RHBL-FR36TJN00A
Keller #1050293
My Part ##
Last Ordered#
$2,715.35 / ea
