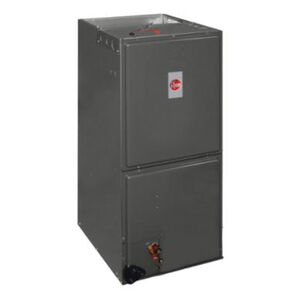

Rheem® CSG-305-S RHSL-HM4824JA Air Handler, 4 ton, 48000 Btu/hr BTU, 1600 cfm, 208/240 VAC, 14.06 kW, 3/4 hp, 60 Hz
Rheem® CSG-305-S RHSL-HM4824JA Air Handler, 4 ton, 48000 Btu/hr BTU, 1600 cfm, 208/240 VAC, 14.06 kW, 3/4 hp, 60 Hz
Rheem® Air Handler, RHSL Series, 4 ton Nominal Capacity, 48000 Btu/hr BTU Rating, 208/240 VAC Voltage Rating, 14.06 kW Wattage, 3/4 hp Rating, 60 Hz Frequency Rating, 1 ph Phase, 1600 cfm Rating, Multi-Position Configuration, 13 SEER Rating, Connection Type: 3/8 in Sweat Liquid, 7/8 in Sweat Vapor, R-410A Refrigerant Type, Steel, Pre-Painted, 24-1/2 in W x 21-11/16 in D x 50-1/2 in H Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,281.35 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
ApplicationFor air conditioner or heat pump
BTU Rating48000
CFM Rating1600
ConfigurationMulti-Position
Connection Type3/8 " Sweat Liquid, 7/8 " Sweat Vapor
Dimensions24-1/2 " W x 21-11/16 " D x 50-1/2 " H
FinishPre-Painted
Frequency Rating60
HP Rating3/4
IndustryHVAC
MaterialSteel
Nominal Capacity4
Phase1
Refrigerant TypeR-410A
SEER Rating13
SeriesRHSL
Voltage Rating208/240
Wattage14.06
Additional Information
AHRI Certified, ISO 9001:2008, C/US UL Listed
Features & Benefits
- Attractive pre-painted cabinet exterior, rugged wall steel cabinet construction, designed for added strength and versatility 1 in foil faced insulation mechanically retained in blower compartment Four leg rubber insulated wire motor mount Blower housing with integrated controls, motor and blower, slide-out design for service and maintenance convenience Field convertible for vertical upflow, vertical down flow, horizontal left hand or right hand air supply Three combustible floor base accessories fit all model sizes when required for down flow installations on combustible floors Indoor coil design provides low air side pressure drop, high-performance and extremely compact size Expansion valve on indoor coil provides for operation with air conditioning or heat pump using the same coil Coils are constructed of aluminum fins bonded to internally grooved copper tubing Molded polymer corrosion resistant condensate drain pan is provided for all indoor coils Supply duct flanges provided as standard on air handler cabinet Front refrigerant and drain connections 22-7/8 in W x 19-3/4 in D return air opening 23 in supply duct 3/4 in auxiliary, primary drain connection PSC, two speed blower motor 10 x 10 in blower 50 deg F maximum electric heat rise 1st design variation
Rheem® CSG-305-S RHSL-HM4824JA Air Handler, 4 ton, 48000 Btu/hr BTU, 1600 cfm, 208/240 VAC, 14.06 kW, 3/4 hp, 60 Hz
BrandRheem®
MFG #RHSL-HM4824JA
Keller #1050310
My Part ##
Last Ordered#
$3,281.35 / ea
