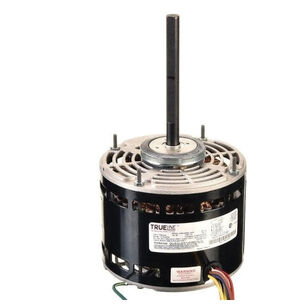

RUUD® TrueLine™ W51-14BJA3-02 Indoor Blower Motor, 1/4 hp, 208-230 V, 60 Hz, 1 ph, 48 Frame, 1075 rpm Speed
RUUD® TrueLine™ W51-14BJA3-02 Indoor Blower Motor, 1/4 hp, 208-230 V, 60 Hz, 1 ph, 48 Frame, 1075 rpm Speed
RUUD® Indoor Blower Motor, W51 Series, 1/4 hp, 208-230 V, 1.6 A, 60 Hz, 1 ph Phase, 1075 rpm, 3 Speed, 48 Frame, 1/2 in Dia x 5 in L Shaft, Sleeve Bearing, Shell-Band, Thru-Bolt Mounting, 5-5/8 in Overall Width, 10-3/8 in Overall Height, Additional Information: Reversible Rotation, Direct Drive
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$175.98 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRheem®
Additional InformationReversible Rotation, Direct Drive
Amperage Rating1.6
Bearing TypeSleeve
Frame48
Frequency Rating60
HP Rating1/4
IndustryHVAC
Mounting TypeShell-Band, Thru-Bolt
Number of Speeds3
Overall Height10-3/8
Overall Width5-5/8
Phase1
SeriesW51 Series
Shaft Size1/2 " Dia x 5 " L
Speed Rating1075
Voltage Rating208-230
Features & Benefits
- Thru-bolt or belly band mounting Self-aligning bearing Reversible 48 frame 1075/950/850 three speed 1⁄2" shaft diameter 5" shaft length
Marketing Information
The TrueLine™ blower motor for HVAC systems is designed to withstand high humidity environments, offering corrosion resistance for extended lifespan. This furnace blower motor replacement features unique rotor treatment and varnish dipped windings, making them ideal for both residential and light commercial HVAC applications. These indoor blower motors come equipped with three and four speeds, along with reversible rotation capabilities. When changing a blower motor out, ensure an HVAC professional installs the blower motor replacement for safety purposes.
RUUD® TrueLine™ W51-14BJA3-02 Indoor Blower Motor, 1/4 hp, 208-230 V, 60 Hz, 1 ph, 48 Frame, 1075 rpm Speed
BrandRheem®
MFG #W51-14BJA3-02
Keller #1050840
