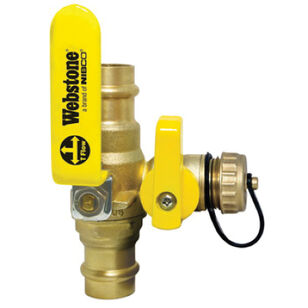

Webstone Pro-Pal H-x061W Series H-80612W Ball Valve, 1/2 in, Press, Brass, 250 psi
Webstone Pro-Pal H-x061W Series H-80612W Ball Valve, 1/2 in, Press, Brass, 250 psi
Webstone Pro-Pal Ball Valve, H-x061W Series, 1/2 in Nominal, Press Connection, Full Port, 250 psi, Water Media, 3-3/4 in Inlet to Outlet Length, 1.94 in Top to Inlet Center, Reversible Handle Operator, Brass Body, PTFE Seat, Brass Stem, Brass/PTFE Trim, PTFE Packing, Aluminum Handle, Brass Ball, EPDM/PTFE/Vinyl Softgoods, Lead-Free, 250 deg F, 3-3/4 in L, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$79.51Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandWebstone
Ball MaterialBrass
Body MaterialBrass
Connection TypePress
Dimensions3-3/4 " L
Domestic/ImportDomestic
Handle MaterialAluminum
IncludesHi-Flow Hose Drain, Adjustable Packing Gland and Reversible Handle
IndustryPlumbing
Inlet to Outlet Length3-3/4
Lead-FreeYes
MediaWater
Nominal Size1/2
Operator TypeReversible Handle
Packing MaterialPTFE
Port TypeFull
Pressure Rating250
Seat MaterialPTFE
SeriesH-x061W Series
Softgoods MaterialEPDM/PTFE/Vinyl
Stem MaterialBrass
Temperature Rating250
Top to Inlet Center1.94
Trim MaterialBrass/PTFE
Additional Information
NSF/ANSI/CAN 61, 372, 14
Features & Benefits
- Eliminates assembly needed to isolate and drain any portion of a piped system Reversible handle for added versatility Exclusive adjustable flow path allow for draining from either side of the ball Replaces four components Eliminates three leak paths
Webstone Pro-Pal H-x061W Series H-80612W Ball Valve, 1/2 in, Press, Brass, 250 psi
BrandWebstone
MFG #H-80612W
Keller #1054212
My Part ##
Last Ordered#
$79.51Â /Â ea
