T&S B-0508 Pedal Valve, 1/2 in FNPT Inlet Connection, 1/2 in FNPT Outlet Connection, Foot Operation, 1 -Pedal, Brass
T&S B-0508 Pedal Valve, 1/2 in FNPT Inlet Connection, 1/2 in FNPT Outlet Connection, Foot Operation, 1 -Pedal, Brass
T&S Pedal Valve, Flip-Up Long Style, 1/2 in FNPT Inlet Connection, 1/2 in FNPT Outlet Connection, Foot Operation, 20 to 125 psi, 40 to 140 deg F, 1 Pedals, Self-Closing Valve, Wall Mounting, Brass, Finish: Polished Chrome, 3-5/8 in W x 14-5/8 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$397.50Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandT&S Brass
Body MaterialAluminum/Brass
Dimensions3-5/8 " W x 14-5/8 " D
End StyleFNPT
FinishPolished Chrome
IndustryPlumbing
Inlet Connection1/2 " FNPT
MaterialBrass
Mounting TypeWall
Nominal Size1/2
Number of Pedals1
Operation Type'
Outlet Connection1/2 " FNPT
Pressure Rating20 to 125
StyleFlip-Up Long
Temperature Rating40 to 140
Valve TypeSelf-Closing
Weight4.5
Shipping Dimensions (L x W x H)14" x 4" x 11"
Additional Information
ASME A112.18.1|CSA B125.1|NSF/ANSI 372|NSF/ANSI/CAN 61 Q<=1
Features & Benefits
- 1/2" NPT female inlet and outlet Adjustable height blank pedal Includes mounting screws Material: Polished chrome brass body, satin finish aluminum pedal Pedal flips up for floor cleaning Self-closing valve Wall mounted single pedal valve
Documents
Marketing Information

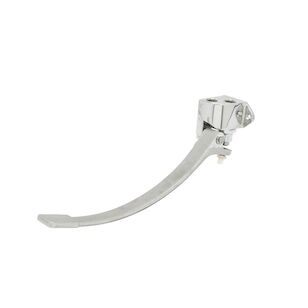

Wall mounted single pedal valve with chrome plated solid brass body, adjustable height aluminum pedal, self-closing valve, 1/2" NPT female inlet and outlet and mounting screws. Certified to ASME A112.18.1/CSA B125.1, NSF61-Section 9 and NSF 372.
T&S B-0508 Pedal Valve, 1/2 in FNPT Inlet Connection, 1/2 in FNPT Outlet Connection, Foot Operation, 1 -Pedal, Brass
BrandT&S Brass
MFG #B-0508
Keller #1054515
