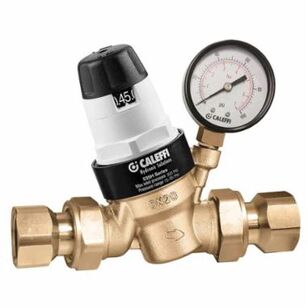

Caleffi PresCal™ 535 Series 535381HA Pressure Reducing Valve With Gauge, 2-1/2 in, FNPT Union, 7.3 to 44 gpm, 300 psi
Caleffi PresCal™ 535 Series 535381HA Pressure Reducing Valve With Gauge, 2-1/2 in, FNPT Union, 7.3 to 44 gpm, 300 psi
Caleffi PresCal™ Pressure Reducing Valve With Gauge, 535 Series, 2-1/2 in Nominal, FNPT Union Connection, 7.3 to 44 gpm Flow Rate, 300 psi, Brass Stem, Stainless Steel Seat, EPDM Seal, Brass, Material Standard: EN 1982 CC768S, Contains Lead, 180 deg F, 8 in L x 7 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$663.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandCaleffi
Connection TypeFNPT Union
Dimensions8 " L x 7 " H
Flow Rate7.3 to 44
MaterialBrass
Material StandardEN 1982 CC768S
Nominal Size2-1/2
Pressure Rating300
Seal MaterialEPDM
Seat MaterialStainless Steel
Series535 Series
Stem MaterialBrass
Temperature Rating180
Additional Information
ANSI Specified|ASSE 1003|ASTM F1807/F1960|Buy American Act Compliant|California Health and Safety Code 116875|California HSC 116875|CAN Certified|CSA B356|ICC ES PMG 1360|ICC ES PMG 1376|IPC/IRC/UPC and NPC Listed|NSF 61/372|Reduction of Lead in Drinking Water Act S.3874|UL 2043|Verment Act 1983
Features & Benefits
- Front and back set point indication for visibility in any mounting orientation
Marketing Information
Pressure reducing valves are devices which, when installed on water systems, reduce and stabilize the pressure of the water entering from the water supply main. This pressure, in general, is too high and variable for domestic systems to operate correctly. The PresCal™ 535H series pressure reducing valves feature a dial indicator with direct readout allowing easy pressure pre-adjustment. The valve is constructed of DZR low-lead forged brass and incorporates a unique noise reducing and high flow seat design, easy inline servicing with a replaceable cartridge and an integral stainless steel filter (35 mesh). Suitable for water systems that may contain sediment and debris.
Caleffi PresCal™ 535 Series 535381HA Pressure Reducing Valve With Gauge, 2-1/2 in, FNPT Union, 7.3 to 44 gpm, 300 psi
BrandCaleffi
MFG #535381HA
Keller #1055158
My Part ##
Last Ordered#
$663.00 / ea
