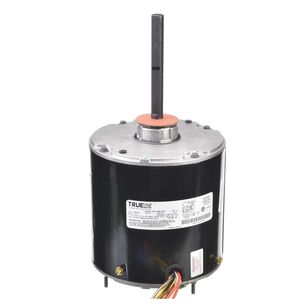

Rheem® W51-12CJA1-02 Universal Condenser Motor, 1/2 hp, 208/230 V, 60 Hz, 1 ph, 48 Frame, 1075 rpm Speed
Rheem® W51-12CJA1-02 Universal Condenser Motor, 1/2 hp, 208/230 V, 60 Hz, 1 ph, 48 Frame, 1075 rpm Speed
Rheem® Universal Condenser Motor, 1/2 hp, 208/230 V, 2.5 A, 60 Hz, 1 ph Phase, 1075 rpm, 1 Speed, 48 Frame, 1/2 in Dia x 5 in L Shaft, Sleeve Bearing, Thru-Bolt, Shell-Band, Shell-Screw Mounting, 5-5/8 in Overall Width, Additional Information: Direct Drive, Reversible Rotation, Keyed/Flat Shaft, 15/370 uF/V Run Capacitor, 10-9/16 in L Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$214.11 / ea
In Stock
- Attributes
- Features & Benefits
- Marketing Information
Attributes
BrandRheem®
Additional InformationDirect Drive, Reversible Rotation, Keyed/Flat Shaft, 15/370 uF/V Run Capacitor, 10-9/16 " L Dimensions
Amperage Rating2.5
Bearing TypeSleeve
Frame48
Frequency Rating60
HP Rating1/2
Mounting TypeThru-Bolt, Shell-Band, Shell-Screw
Number of Speeds1
Overall Width5-5/8
Phase1
Shaft Size1/2 " Dia x 5 " L
Speed Rating1075
Voltage Rating208/230
Features & Benefits
- Thru-bolt or belly band mounting Self-aligning bearing Reversible 48 frame 825 or 1075 single speed 1/2" shaft diameter 4-1/2" or 5" shaft length
Marketing Information
The TrueLine™ PSC condenser motors are designed to withstand high humidity environments, offering corrosion resistance for extended lifespan. They feature unique rotor treatment and varnish dipped windings, making them ideal for both residential and light commercial HVAC applications. These indoor blower motors come equipped with three and four speeds, along with reversible rotation capabilities.
Rheem® W51-12CJA1-02 Universal Condenser Motor, 1/2 hp, 208/230 V, 60 Hz, 1 ph, 48 Frame, 1075 rpm Speed
BrandRheem®
MFG #W51-12CJA1-02
Keller #1056683
