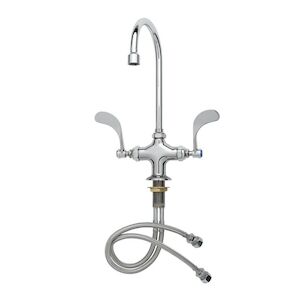

T&S B-0309 Double Pantry Mixing Faucet, Deck, Polished Chrome
T&S B-0309 Double Pantry Mixing Faucet, Deck, Polished Chrome
T&S Double Pantry Mixing Faucet, Deck Mounting, 1-Hole Faucet Hole Compatibility, Manufacturer Finish: Polished Chrome, Finish Family: Chromes, Wrist Blade Handle Style, Brass Body, 2.2 gpm Flow Rate, 8-7/16 in Spout Height, 8-13/16 in Spout Reach, Fixed, Gooseneck, Swivel Spout, Compression, 1-7/8 in Maximum Deck Thickness, 5/8 in, 1/2 in Connection, OD Compression, Male NPSM Connection, Components Included: Handles|Hose|Valve, Low Lead Low Lead, ADA Compliant, Additional Information: 20 to 125 psi Pressure Rating, 40 to 140 deg F Temperature Rating
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$487.00Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandT&S Brass
Additional Information20 to 125 psi Pressure Rating, 40 to 140 deg F Temperature Rating
Body MaterialBrass
Cartridge TypeCompression
Color/FinishPolished Chrome-Plated
Components IncludedHandles|Hose|Valve
Connection Size5/8 ", 1/2 "
Connection TypeOD Compression, Male NPSM
Faucet Hole Compatibility1-Hole
FinishPolished Chrome-Plated
Finish FamilyChromes
Flow Rate2.2
Handle MaterialChrome-Plated Metal
Handle StyleWrist Blade
Handle TypeWrist Action
Hose Size18"
Low Lead CompliantLow Lead
MaterialBrass
Maximum Deck Thickness1-7/8
Mounting TypeDeck
Number of Faucet Holes1
Spout Height8-7/16
Spout Reach8-13/16
Spout TypeFixed, Gooseneck, Swivel
spray_typeAerated
Valve/Cartridge TypeCompression
Weight7
Shipping Dimensions (L x W x H)12" x 4" x 28"
Additional Information
ASME A112.18.1|Buy American Act Compliant|CSA B125.1|NSF/ANSI 372|NSF/ANSI/CAN 61 Q<=1
Features & Benefits
- 18" flexible stainless steel supply hoses w/ 1/2" NPSM / 5/8" O.D. compression connections 2.2 GPM vandal resistant aerator, Series 7 (B-0199-07) 4" wrist action handles w/ color coded indexes & vandal resistant screws 8 13/16" swivel/rigid gooseneck Includes lock washer to convert to rigid Material: Polished chrome plated brass body & tubular spout, and chrome plated metal handles Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water Single hole deck mount mixing faucet w/ polished chrome plated brass body
Documents
Marketing Information
Single hole deck mount mixing faucet with polished chrome plated brass body, 8 13/16" swivel/rigid gooseneck with 2.2 GPM vandal resistant aerator, compression cartridges with spring checks, 4" wrist action handles with vandal resistant screws and 18" flexible stainless steel supply hoses with 1/2" NPSM / 5/8" O.D. compression connections. Certified to ASME A112.18.1 / CSA B125.1,NSF 61-Section 9 and NSF 372. Meets ADA ANSI/ICC A117.1 requirements.
