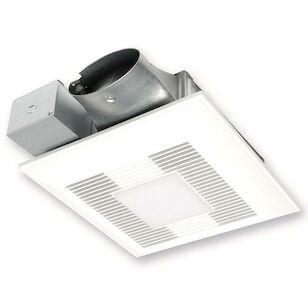

Panasonic WhisperValue® DC™ FV-0810VSSL1 Ventilation Fan/Light, 120 VAC, 0.18 A, LED Lamp
Panasonic WhisperValue® DC™ FV-0810VSSL1 Ventilation Fan/Light, 120 VAC, 0.18 A, LED Lamp
Panasonic WhisperValue® DC™ Ventilation Fan/Light, 120 VAC, 0.18 A, 60 Hz Frequency, 12.4 W Power, Ceiling Mounting, 10-1/2 in Mounting, 13 in Grille, LED Lamp, 10 W Lamp Wattage, 700 Lumens, 70 Lumens/W Lumens, 90 Color Rendering Index, 3000 K Color Temperature, ECM Motor, Noise Rating: <0.3 to 1.3 sones, 8 Speed, 954 to 1300 rpm Speed, 15-3/4 in Overall Length, 12 in Overall Width, 3-3/8 in Overall Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$306.59 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandPanasonic
Amperage Rating0.18
Color Rendering Index (CRI)90
Color Temperature3000
Frequency Rating60
Grille Size13
Lamp TypeLED
Lamp Wattage10
Lumens700
Lumens Wattage70
Map181.99
Motor TypeECM
Mounting Size10-1/2
Mounting TypeCeiling
Noise Rating<0.3 to 1.3
Number of Speeds8
Overall Height3-3/8
Overall Length15-3/4
Overall Width12
Power Rating12.4
SeriesWhisperValue DC
Speed Rating954 to 1300
Voltage Rating120
Shipping Dimensions (L x W x H)16.93" x 14.17" x 9.06"
Additional Information
ASHRAE 62.2 Compliant|CALGreen Certified|California Title 24 Compliant|ENERGY STAR® Certified|IAP Listed|LEED Certified|UL Listed
Features & Benefits
- Revolutionary ECM motor with SmartFlow™ technology for optimum cfm output Pick-A-Flow™ airflow selector - 1 fan, you choose the cfm Incorporates one 10 W dimmable LED chip panel with <1 W LED night light for warm, energy efficient illumination Built-in multi-speed control for ASHRAE 62.2 continuous ventilation compliance Elegant grille design compliments the aesthetics of any bathroom Optional built-in condensation sensor to control moisture in the bathroom Unique L-shaped bracket simplifies installation and provides strong support UL approved for ceiling or wall-mount Wall installation reduces cost by eliminating the need to incorporate a radiation damper when penetrating fire rated ceilings, making it ideal for multi-family applications UL listed for tub/shower enclosure when GFCI protected
Documents
Marketing Information
WhisperValue® DC™ fan/LED light with multi-speed for ASHRAE 62.2 compliance allows you to select the proper cfm settings to satisfy ASHRAE 62.2 continuous ventilation requirements. It is the lowest profile ENERGY STAR® rated ventilation fan available. Ideal for residential construction (single and multi-family) and manufactured homes. It features Panasonic's revolutionary ECM motor with SmartFlow™ optimum cfm technology and incorporates a Pick-A-Flow™ airflow selector switch to customize airflow (80 to 100 cfm).
