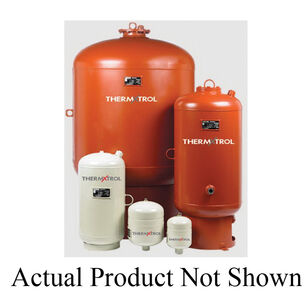

AMTROL® ST-C Series 390602 Thermal Expansion Tank, 6.4 gal Capacity, 3/4 in, NPTM, Steel, Red Oxide Primer, 150 psig
AMTROL® ST-C Series 390602 Thermal Expansion Tank, 6.4 gal Capacity, 3/4 in, NPTM, Steel, Red Oxide Primer, 150 psig
AMTROL® Thermal Expansion Tank, ST-C Series, 6.4 gal Capacity, 3/4 in Connection, NPTM Connection, 0.5 gal Acceptance Factor, Butyl Rubber Diaphragm, Steel, Finish: Red Oxide Primer, 150 psig, 200 deg F, 12 in Dia x 18 in H, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,716.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandAMTROL®
Acceptance Factor0.5
Capacity6.4
Connection Size3/4
Connection TypeNPTM
Diaphragm MaterialButyl Rubber
Dimensions12 " Dia x 18 " H
Domestic/ImportDomestic
FinishRed Oxide Primer
MaterialSteel
Pressure Rating150
SeriesST-C Series
Temperature Rating200
Additional Information
NSF/ANSI 61|IAPMO Listed|R/T Listed|ASME Section VIII/Division 1 Code Standard
Features & Benefits
- Increased strength, reduced diameter and reduced weight Anti-microbial liner neutralizes bacteria on contact Tested to JIS Z 2801 for reduction of legionella, staphylococcus and E-coli Follows ASHRAE 188 anti-legionella guidelines Patented turbulator™ prevents sediment build up Butyl bladder, industry's thickest Replaceable bladder avoids costly tank replacement
Documents
Marketing Information
AMTROL® expansion tanks are designed to control pressure in commercial closed, potable hot water systems. Available in diaphragm, partial acceptance bladder and full acceptance bladder designs, these tanks range in size from 2 gal (7.6 L) to 528 gal (2000 L). Offered with maximum working pressure up to 300 psig (21 bar), AMTROL® is effective at protecting the water heater and other plumbing fixtures while saving energy and money. Available in ASME and Non-ASME models.
