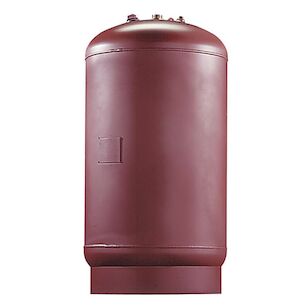

Non-Potable Expansion Tank ASME Fixed Heavy Duty Butyl Bladder Tank Volume 10.9 Gallons
Non-Potable Expansion Tank ASME Fixed Heavy Duty Butyl Bladder Tank Volume 10.9 Gallons
Non-Potable Expansion Tank ASME Fixed Heavy Duty Butyl Bladder Tank Volume 10.9 Gallons
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,023.00Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Air Precharge12 psi
Air ValveYes
Bladder MaterialButyl
Depth12.01"
Diameter12"
FinishRed
Height25.98"
IndustryPlumbing
Inlet Connection Size3/4"
Inlet Connection Size Metric20 mm
Inlet Thread TypeNPT
MaterialCarbon Steel
Maximum Operating Temperature Deg F240
Maximum Working Pressure Psi150
Mount TypePipe
OrientationHorizontal,Vertical
SeriesETA
Tank Acceptance2.5 gal
Tank Height26''
Tank MaterialCarbon Steel
Tank Volume10.9 gal
Weight46.3 lbs.
Width12.01"
Shipping Dimensions (L x W x H)12.008" x 12.01" x 25.98"
Features & Benefits
- ASME Section VIII construction
- Heavy duty fixed butyl bladder
- Precharged to 12 psi
- Carbon steel shell
- Field adjustable
Documents
Marketing Information
This 10.9 gallon pressurized expansion tank is designed to absorb the expansion forces and control the pressure in heating and cooling systems. It is an ASME Section VIII fixed bladder type precharged expansion tank. The excess water is contained in the heavy duty butyl bladder preventing tank corrosion and waterlogging problems. Maximum pressure of 150 psi (10 bar).
Non-Potable Expansion Tank ASME Fixed Heavy Duty Butyl Bladder Tank Volume 10.9 Gallons
BrandWATTS®
MFG #0212001
Keller #1061073
My Part ##
Last Ordered#
$3,023.00Â /Â ea
