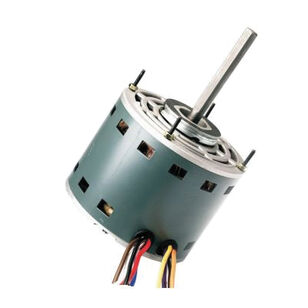

DiversiTech® Wagner® WG840458 Multiple Horsepower Condenser Fan Motor, 1/3 hp, 1/6 hp, 208-230 V, 60 Hz, 1 ph
DiversiTech® Wagner® WG840458 Multiple Horsepower Condenser Fan Motor, 1/3 hp, 1/6 hp, 208-230 V, 60 Hz, 1 ph
DiversiTech® Wagner® Multiple Horsepower Condenser Fan Motor, 1/3 hp, 1/6 hp, 208-230 V, 2 A, 60 Hz, 1 ph Phase, 1075 rpm, 1 Speed, Totally Enclosed Enclosure, 48 in Frame, 1/2 in Dia x 5 in L Shaft, Ball Bearing, Belly Band Mounting, 140 deg F, Insulation Class: Class B, 6.63 in Overall Width, 12.88 in Overall Depth, 7-1/4 in Overall Height, Additional Information: PSC Motor, Ducted, 370 V Capacitor, 36 in Lead
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$348.84 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandDiversiTech®
Additional InformationPSC Motor, Ducted, 370 V Capacitor, 36 " Lead
Amperage Rating2
Bearing TypeBall
CollectionMotors
Depth12.88
Enclosure TypeTotally Enclosed
Frame48
Frequency Rating60
Height7.25
HP Rating1/3 hp, 1/6 hp
Insulation ClassClass B
Mounting TypeBelly Band
Number of Speeds1
Overall Depth12.88
Overall Height7-1/4
Overall Width6.63
Phase1
Shaft Size1/2 " Dia x 5 " L
Speed Rating1075
Temperature Rating140
Voltage Rating208-230
WarrantyLimited
Width6.63
Shipping Dimensions (L x W x H)12.88" x 6.63" x 7.25"
Additional Information
NEC Certified|UL Listed
Features & Benefits
- Motors feature reversing plugs, extended thru bolts, 36 in leads and are designed for 370 V capacitors Ball bearing design allows for greater heat endurance, improved performance, increased reliability and enhanced motor life Extended-mounting bolts provides easier installation in cramped spaces and allows the installer to start the threaded-mounting nut quickly and efficiently The electrical reversing plug simplifies rotation direction changes and the wires are 30 in L, making it easier for the contractor to install the new motor Run capacitor connections are insulated for increased safety and flag disconnects are provided Detailed and large wiring diagrams are on the motor and the motor carton and also in the installation and safety instruction sheet
Documents
Marketing Information
This Wagner® WG840458 multiple horsepower condenser fan motors, 208-230 V, 1075/1 speed, 1/3 hp max is specially designed to cover a range of applications. This motor is electrically reversible and features 36 in leads.
DiversiTech® Wagner® WG840458 Multiple Horsepower Condenser Fan Motor, 1/3 hp, 1/6 hp, 208-230 V, 60 Hz, 1 ph
BrandDiversiTech®
MFG #WG840458
Keller #1061691
