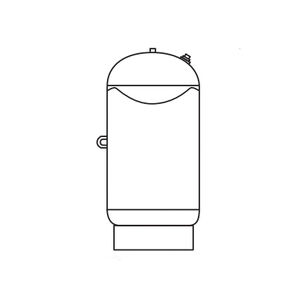

AMTROL® ST-C Series 390603 Thermal Expansion Tank, 8 gal Capacity, 3/4 in, NPTF, Steel, Oxide Primer, Red, 150 psi
AMTROL® ST-C Series 390603 Thermal Expansion Tank, 8 gal Capacity, 3/4 in, NPTF, Steel, Oxide Primer, Red, 150 psi
AMTROL® Thermal Expansion Tank, ST-C Series, 8 gal Capacity, 3/4 in Connection, NPTF Connection, Butyl Rubber Diaphragm, Steel, Finish: Oxide Primer, Red, 150 psi, 200 deg F, 12 in Dia x 19 in H, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,862.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandAMTROL®
Capacity8
ColorRed
Connection Size3/4
Connection TypeNPTF
Diaphragm MaterialButyl Rubber
Dimensions12 " Dia x 19 " H
Domestic/ImportDomestic
FinishOxide Primer
MaterialSteel
Pressure Rating150
SeriesST-C Series
Temperature Rating200
Shipping Dimensions (L x W x H)12" x 22"
Additional Information
ASHRAE 188|ASME Section VIII Division I|JIS Z 2801
Features & Benefits
- Antimicrobial liner neutralizes bacteria on contact Turbulator water diffuser Deep drawn steel domes for 2X the strength of other tanks Thickest diaphragm for extra long life Hoop and groove design for added reliability Accepts expanded water as system temperature rises and returns hot water to system when demand occurs Multiple units can be installed to accommodate larger systems Stainless steel system connection Heavy-duty butyl NSF/ANSI 61 diaphragm Antimicrobial liner protection Schrader valve with EPDM seats air valve InSight indicator cap 0.4 Maximum accept factor Designed and constructed per ASME code section VIII, division 1 Fixed diaphragm construction Made in USA
Marketing Information
AMTROL® expansion tanks are designed to control pressure in commercial closed, potable hot water systems. Available in diaphragm, partial acceptance bladder and full acceptance bladder designs, these tanks range in size from 2 to 528 gal. Offered with maximum working pressure up to 300 psig, AMTROL® is effective at protecting the water heater and other plumbing fixtures while saving energy and money. Available in ASME and Non-ASME models.
