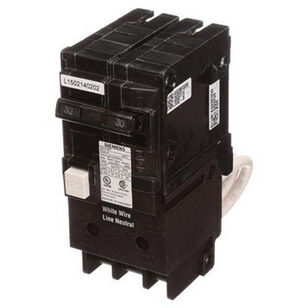

Siemens QF230 Circuit Breaker, 120/240 VAC, 30 A, 10 kA Interrupt, 2-Pole, Thermal Magnetic Trip
Siemens QF230 Circuit Breaker, 120/240 VAC, 30 A, 10 kA Interrupt, 2-Pole, Thermal Magnetic Trip
Siemens Circuit Breaker, 30 A, 120/240 VAC, 60 Hz, 10 kA Interrupt Rating, 2 Poles, 1 ph, Connection Type: Plug-In, QPF Frame, Thermal Magnetic Trip, 5 mA Trip, Line and Load Lug Terminal, 14 to 4 AWG Wire, 6.8 in Width, 7.9 in Length, 12.7 in Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSiemens
Amperage Rating30
ApplicationFor spas, hot tubs, kitchens, bathrooms and residential use
Connection TypePlug-"
Frame TypeQPF
Frequency Rating60
Height12.7
IndustryLeisure
Interrupt Rating10
Length7.9
Number of Poles2
Phase1
Terminal TypeLine and Load Lug
Trip Range5
Trip TypeThermal Magnetic
Voltage Rating120/240
Width6.8
Wire Size14 to 4
Shipping Dimensions (L x W x H)6.69" x 12.6" x 7.87"
Additional Information
CSA Certified|HACR Rated|UL 943
Features & Benefits
- Resists false tripping (shielded to prevent RF interference) Standard 1 in per pole format with plug-in design Provides Class A GFCI protection
Documents
Marketing Information
Ground fault circuit interrupters (GFCI) are an effective means of preventing severe electrical shock or electrocution from ground faults. To protect equipment from damaging ground faults, Siemens GFCIs monitor the difference in current between the hot and neutral conductors. If the electricity going to an outlet equals the current coming back from the outlet, the GFCI is dormant. If the electricity going to an outlet is greater than 5 mA than the current coming back from the outlet, the GFCI will open the circuit to stop of flow of electricity. With the extension of the National Electrical Code 2020 to protect more areas of the home, Siemens has expanded the GFCI product line to include 25, 35 and 45 A ratings, continuing to provide complete home safety for our customers. The NEC 2020 Article 210.8(F) extends GFCI protection to circuits feeding HVAC units and other modern-life applications.
