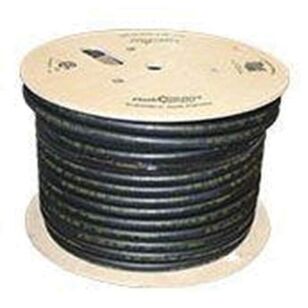

Gastite® FlashShield+™ FSP-8-25 Corrugated Tubing, 1/2 in Nominal Pipe, 1/2 in ID, 0.78 in OD, 25 ft, Stainless Steel
Gastite® FlashShield+™ FSP-8-25 Corrugated Tubing, 1/2 in Nominal Pipe, 1/2 in ID, 0.78 in OD, 25 ft, Stainless Steel
Gastite® FlashShield+™ Corrugated Tubing, 1/2 in Nominal Pipe, 1/2 in Inside Diameter, 0.78 in Outside Diameter, 25 ft Length, 0.01 in Wall Thickness, 25 psi, Stainless Steel, -40 to 160 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$10.29 / ft
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandGastite®
Inside Diameter1/2
Length25
MaterialStainless Steel
Nominal Pipe Size1/2
Outside Diameter0.78
Pressure Rating25
Temperature Rating-40 to 160
Wall Thickness0.01
Additional Information
ASTM A240|ASTM E84|CAN/ULC S102.2 25/50|CSA 1009875|IAPMO File No. C3250/C0239|ICC-ES-PMG 1066/PMG 1155|ICC-ES-PMG LC1027
Features & Benefits
- Electrically insulative polymer cover Metallically shielded CSST Arc-Trap™ feature of XR3 fitting delivers energy safely to ground Metal shield layer dissiates and conducts electricity No manufacturer required bonding Flexibility means quick and easy installations, FlashShield+™ installs 30 to 70% faster than traditional piping methods Pre-marked by the foot, there's no measuring, rigid pipe cutting or threading, this means less waste and fewer fittings 75% fewer fittings in the average installation means a safer system, less leak potential and reduced callbacks FlashShield+™ CSST is lightweight - 250 ft of 1/2 in CSST weighs approximately 50 lb and can be easily transported and handled on the job
Marketing Information
FlashShield+™ is a metallically shielded flexible gas piping system complying with ANSI LC1 fuel gas piping systems using CSST. The FlashShield+™ system is also listed to the arc-resistant (AR) tests of ANSI LC1/CSA 6.26 and ICC-ES PMG LC1027. The corrugated stainless steel tubing is protected by a metallic laminant jacket system consisting of a metallic shield layer between an electrically insulative polymer cover and a semi-conductive polymer inner layer.
Gastite® FlashShield+™ FSP-8-25 Corrugated Tubing, 1/2 in Nominal Pipe, 1/2 in ID, 0.78 in OD, 25 ft, Stainless Steel
BrandGastite®
MFG #FSP-8-25
Keller #1063909
