Viega

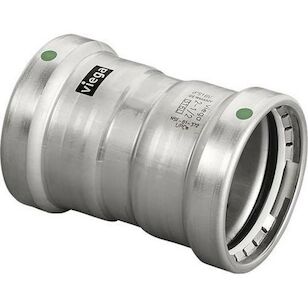

Viega 5115XL Series 90645 Coupling With Stop, 2-1/2 in Press x 2-1/2 in Press, Stainless Steel
Viega
Viega 5115XL Series 90645 Coupling With Stop, 2-1/2 in Press x 2-1/2 in Press, Stainless Steel
MFG #90645
Item #1064686
Mfr. Part #90645
UPC #691514906454
Viega Coupling, 5115XL Series, Coupling Fitting, 2-1/2 in Connection Size 1, Connection Type 1: Press, 2-1/2 in Connection Size 2, Connection Type 2: Press, Press|Press Connection, Stainless Steel, Material Construction: Stainless Steel, For Use With: Viega MegaPress® SCH 10 to SCH 40 Stainless Tubings, 4.92 in L, 0 to 250 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$479.02 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandViega
Connection Size 12-1/2
Connection Size 22-1/2
Connection TypePress|Press
Connection Type 1Press
Connection Type 2Press
Dimensions4.92 " L
Fitting TypeCoupling
For use with:Viega MegaPress SCH 10 to SCH 40 Stainless Tubings
IndustryHVAC
Map206.69
MaterialStainless Steel
Material ConstructionStainless Steel
Series5115XL Series
Temperature Rating0 to 250
Additional Information
ABS Approved|ANSI Specified|ASME B31.1/B31.3/B31.9|Bureau Veritas Certified|CPC Certified|CRN 23076.5 A/B/C|cUL 213|DNV-GL Certified|FM Class 1920|IAPMO PS 117|ICC ES LC1002|IMC Certified|IRC Approved|Lloyd's Register Certified|NBCC/NPCC Canada Certified|NFPA 13/13D/13R|NSF/ANSI 61/372|NSPB Certified|UMC Listed
Features & Benefits
- Engineered with a 420 stainless steel grip ring plus a 304 stainless steel separator ring for sizes 1/2 to 2 in and a PBT separator ring for sizes 2-1/2 to 4 in 316 stainless carries an NSF 61 potable water rating Wide range of fitting configurations Eliminates threading and welding No fire watches, hot work permits or messy cutting oils Makes secure Press® connections on sizes from 1/2 to 4 in s Can be used on sch 80 pipe, but with the rating of a sch 40 system Compatible with existing Press® tools
Viega 5115XL Series 90645 Coupling With Stop, 2-1/2 in Press x 2-1/2 in Press, Stainless Steel
BrandViega
MFG #90645
Keller #1064686
My Part ##
Last Ordered#
$479.02 / ea
