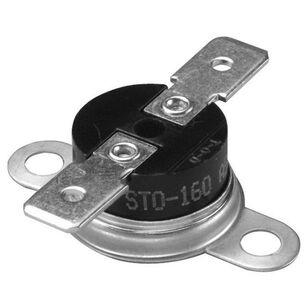

WHITE-RODGERS™ 3L11 Series 3L11-175 1/2 in Bimetal Disc Thermostat, 120 to 240 VAC
WHITE-RODGERS™ 3L11 Series 3L11-175 1/2 in Bimetal Disc Thermostat, 120 to 240 VAC
WHITE-RODGERS™ 1/2 in Bimetal Disc Thermostat, 3L11 Series, 120 to 240 VAC, 15 A at 120 VAC, 10 A at 240 VAC Resistive, 3 A at 120 VAC, 1.5 A at 240 VAC Full Load, 12 A at 120 VAC, 6 A at 240 VAC Locked Rotor Inductive, Snap Action, SPST to NC Switch, 170 to 180 deg F Operating, 15 deg F Differential, 1/4 in Quick Connect Connection, Flange Mounting, Dimensions: 1.23 in L x 1.32 in W x 0.32 in H, Aluminum/Stainless Steel
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$16.93 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandWHITE-RODGERS™
Amperage Rating15 A at 120 VAC, 10 A at 240 VAC Resistive, 3 A at 120 VAC, 1.5 A at 240 VAC Full Load, 12 A at 120 VAC, 6 A at 240 VAC Locked Rotor Inductive
Connection Type1/4 " Quick Connect
Dimensions1.23 " L x 1.32 " W x 0.32 " H
IndustryHVAC
MaterialAluminum/Stainless Steel
Mounting TypeFlange
Series3L11 Series
Switch TypeSnap Action, SPST to NC
Temperature Rating170 to 180 deg F Operating, 15 deg F Differential
Voltage Rating120 to 240
Additional Information
UL E19279, CSA LR19988, VDE 81669
Features & Benefits
- Open on rise 10854 style, type 36T21 therm-O-disc Have proven reliability in a compact, versatile, cost-effective design High speed contact separation provides long contact life
Documents
WHITE-RODGERS™ 3L11 Series 3L11-175 1/2 in Bimetal Disc Thermostat, 120 to 240 VAC
BrandWHITE-RODGERS™
MFG #3L11-175
Keller #1065760
My Part ##
Last Ordered#
$16.93 / ea
