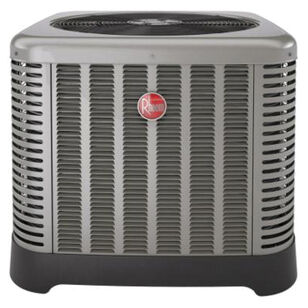

Rheem® RA1324BJ1NB Air Conditioner, 2 ton, 24000 Btu/hr Cooling, 208-230 V, 24000 Btu/hr
Rheem® RA1324BJ1NB Air Conditioner, 2 ton, 24000 Btu/hr Cooling, 208-230 V, 24000 Btu/hr
Rheem® Air Conditioner, Classic® RA13 Series, 2 ton Nominal Capacity, 24000 Btu/hr Cooling Capacity, 24000 Btu/hr BTU Rating, 208-230 V Voltage Rating, 15 A Amperage Rating, 137 W Wattage, 1/8 hp Rating, 1075 rpm Rotational Speed, 60 Hz Frequency Rating, 1 ph Phase, Scroll Compressor Type, 2325 cfm Rating, 11 EER Rating, 13 SEER Rating, 1 Number of Stages, R-410A Refrigerant Type, 3/8 in Liquid Line Size, 3/4 in Suction Line Size, 75 dBA Sound Level, Direct Drive Type, 1-Row Coil Rating, 25 A Fuse Rating, 9.1 sq-ft Face Area, Condenser Motor Type, 18 FPI Fins per Inch, Steel, Galvanized/Powder-Coated, 29-3/4 in L x 29-3/4 in W x 25 in H Dimensions, Non-Communicating Controls Additional Information
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,371.38 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Additional InformationNon-Communicating Controls
Amperage Rating15
BTU Rating24000
CFM Rating2325
Coil Rating1-Row
Compressor TypeScroll
Cooling Capacity24000
Dimensions29-3/4 " L x 29-3/4 " W x 25 " H
Drive TypeDirect
EER Rating11
Face Area9.1
FinishGalvanized/Powder-Coated
Fins per Inch18
Frequency Rating60
Fuse Rating25
HP Rating1/8
Liquid Line Size3/8
MaterialSteel
Motor TypeCondenser
Nominal Capacity2
Number of Stages1
Phase1
Refrigerant TypeR-410A
Rotational Speed1075
SEER Rating13
SeriesClassic RA13 Series
Sound Level75
Suction Line Size3/4
Voltage Rating208-230
Warranty10 Year Conditional Compressor and Parts
Wattage137
Shipping Dimensions (L x W x H)32.38" x 32.38" x 26.75"
Additional Information
AHRI Certified|cULus Listed|ENERGY STAR Certified
Features & Benefits
- New composite base pan - dampens sound, captures louver panels, eliminates corrosion and reduces number of fasteners needed Powder-coated paint system - for a long-lasting professional finish Scroll compressor - uses fewer moving parts for higher efficiency and increased reliability Modern cabinet aesthetics - increased curb appeal with visually appealing design Curved louver panels - provide ultimate coil protection, enhance cabinet strength and increased cabinet rigidity Optimized fan orifice - optimizes airflow and reduces unit sound Rust-resistant screws - confirmed through 1500 hr salt spray testing PlusOne® expanded valve space - 3 in, 4 in, 5 in service valve space provides a minimum working area of 27 sq-in for easier access PlusOne® triple service access - 15 in W, industry leading corner service access makes repairs easier and faster, the two-fastener removable corner allows optimal access to internal unit components, individual louver panels come out once fastener is removed, for faster coil cleaning and easier cabinet reassembly Diagnostic service window with two-fastener opening - provides access to the high and low pressure External gauge port access - allows easy connection of low-loss gauge ports Single row condenser coil - makes unit lighter and allows thorough coil cleaning to maintain "out of the box" performance Fewer cabinet fasteners and fastener-free base - allow for faster access to internal components and hassle-free panel removal Service trays - hold fasteners or caps during service calls QR code - provides technical information on demand for faster service calls Fan motor harness with extra long wires allows unit top to be removed without disconnecting fan wire
