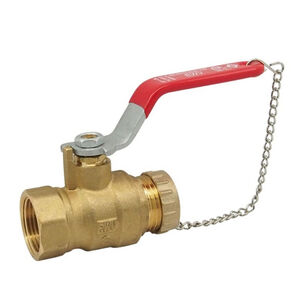

RWV® 5586AB 3/4 Ball Valve, 3/4 in, FNPT x Hose End, Brass, 600 psi
RWV® 5586AB 3/4 Ball Valve, 3/4 in, FNPT x Hose End, Brass, 600 psi
RWV® Ball Valve, 3/4 in Nominal, FNPT x Hose End Connection, Full Port, 600 psi, Pressure Class: 150 lb WSP, 600 lb WOG, 2.89 in Inlet to Outlet Length, 2.2 in Top to Inlet Center, 3/4 in Opening, Lever Handle Operator, Material Standard: ASTM B927 C27453, Brass Body, PTFE Seat, Brass Stem, PTFE Packing, Steel Handle, Brass Ball, FKM Softgoods, Lead-Free, 15 to 160 deg F, Domestic/Import: Import
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$47.95 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRWV®
Ball MaterialBrass
Body MaterialBrass
Connection TypeFNPT x Hose End
Domestic/ImportImport
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length2.89
Lead-FreeYes
Material StandardASTM B927 C27453
Nominal Size3/4
Opening Size3/4
Operator TypeLever Handle
Packing MaterialPTFE
Port TypeFull
Pressure Class150 lb WSP, 600 lb WOG
Pressure Rating600
Seat MaterialPTFE
Softgoods MaterialFKM
Stem MaterialBrass
Temperature Rating15 to 160
Top to Inlet Center2.2
Additional Information
California AB1953|ASME B1.20.7|cALSus Certified|MSS SP-110|NSF/ANSI/CAN 61, 372
Features & Benefits
- Blowout-proof stem Adjustable packing nut Drain cap with chain
