M-VCO UP502/UP440-1IN LF BRZ GLBV
M-VCO UP502/UP440-1IN LF BRZ GLBV

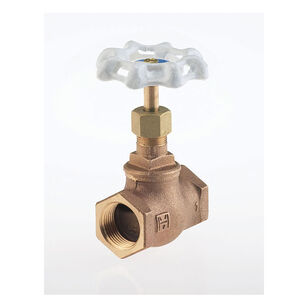

Milwaukee Valve Ultra Pure™ Globe Valve, Series: UP502, 1 in Nominal, FNPT End Style, 300 psi Pressure, 200 deg F, Handwheel Actuator, 2.94 in Inlet to Outlet Length, 4.38 in Top to Inlet Center, Bronze Body, Bronze Trim, Graphite Packing Softgoods, 2-3/4 in Diameter Hand Wheel, Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$991.35 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandMilwaukee Valve
Actuator TypeHandwheel
Body MaterialBronze
Domestic/ImportDomestic
End StyleFNPT
Hand Wheel Diameter2-3/4"
Inlet to Outlet Length2.94"
Nominal Size1"
Pressure Rating300
SeriesUP502
Softgoods MaterialGraphite Packing
Temperature Rating200
Top to Inlet Center4.38"
Trim MaterialBronze
Additional Information
ASTM B584 C89833 Body|ASTM B21 C46400|H02 Stem|MSS SP-80|WQA tested and Certified against NSF/ANSI 372 for "lead free" compliance|PROP65: Cancer and Reproductive Harm. California Transparency in Supply Chains Act of 2010.
Features & Benefits
- Low lead valve for potable water Bronze disc Threaded bonnet 300 WOG Non-shock 1/4 to 1/2 in sizes have the disc integral with the stem and have no disc ring Malleable iron handwheel Note: lead free refers to the wetted surface of the pipe, fittings and fixtures in potable water systems that have a weighted average lead content =0.25 percent, source: California Health and Safety Code (116875) Same design as Hammond UP440
M-VCO UP502/UP440-1IN LF BRZ GLBV
BrandMilwaukee Valve
MFG #UP502 - 100
Keller #1070346
My Part ##
Last Ordered#
$991.35 / ea
