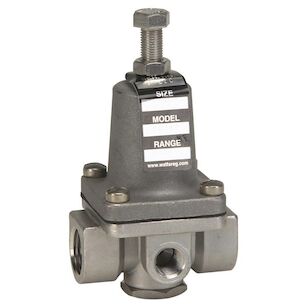

3/8 In Ss 3-Way Small Water Pressure Regulator Npt Female 3-50 psi
3/8 In Ss 3-Way Small Water Pressure Regulator Npt Female 3-50 psi
3/8 In Ss 3-Way Small Water Pressure Regulator Npt Female 3-50 psi
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,675.00Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Adjustable Reduced Pressure Range Psi3 to 50
Depth2.88"
Disc MaterialReinforced EPDM
Height5.13"
IndustryPlumbing
Inlet Connection Size3/8"
Inlet Connection TypeFemale Threaded
Inlet Thread TypeNPT
MaterialStainless Steel
Maximum Temperature Deg F120
Maximum Working Pressure Psi400
Minimum Temperature Deg F33
Outlet Connection Size3/8"
Outlet Connection Thread TypeNPT
Outlet Connection TypeFemale Threaded
SeriesSS263AP
Standard Reduced Pressure Setting Psi15
Valve Style3-Way
Weight1.8 lbs.
Width2.13"
Shipping Dimensions (L x W x H)2.875" x 2.13" x 5.13"
Features & Benefits
- Rugged investment cast stainless steel body and cage
- 1/4 IN (8mm) low pressure gauge port
- Oversized orifice
- Stainless steel adjusting screw
- NPT threaded female inlet and outlet connections
- Temperature range is 33 F to 120 degrees F (0.5 C to 49 degrees C)
- Maximum working pressure is 400 psi (27.6 bar)
Documents
Marketing Information
This 3/8 inch compact 3-way small water pressure regulator is designed for use with deionized water, chemical solutions, high purity water purification systems and low pressure steam 15 psi (1.0 bar) applications. It has an oversized orifice and is ideally used on beverage dispensing and paint spraying equipment, ice cube machines, humidifiers, drinking fountains, and other small process applications. It consists of a compact stainless steel body and spring cage, compact stainless steel adjusting screw, NPT threaded female connections, three way low-pressure gauge port, Buna-N compact stainless steel disc, and a reinforced Buna-N diaphragm. The temperature range is 33 to 120 degrees F (0.5 to 49 degrees C). The reduced pressure range is 3 to 50 psi (0.2 to 3.5 bar) and the pressure is set at 15 psi (1.0 bar).
